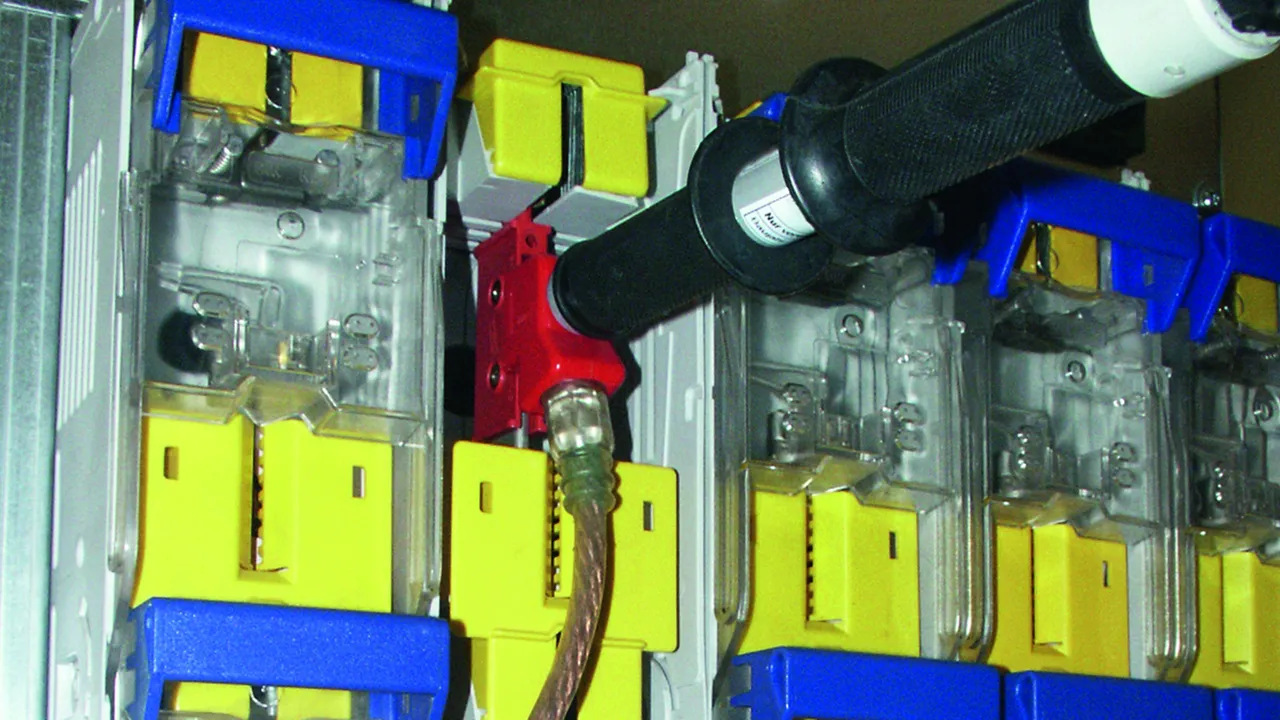

    Attaching a fully insulated earthing and short-circuiting device using an earthing handle of type VI.
  •
  •

Earthing and Short-Circuiting Devices (fully insulated) for Low-Voltage Cable Distribution Cabinets

  • Fully insulated, shock-proof version
  • Complete kit for cable distribution cabinets (CDCs)
  • Safe operation with insulated earthing handle of type VI (with dual function), suitable for both inserting and removing earthing cartridges with T connection as well as for attaching earthing and short-circuiting devices (EaS devices)
  • Waterproof, plastic-sheathed cable guide and node unit, with additional anti-kink protection
  • Other cable lengths can be selected online via the earthing and short-circuiting configurator

Earthing and short-circuiting device VI, spring-loaded earth clamp

Clamping range up to 24 mm, installation via adjustable handle DGF EKV VI.
For cable distribution cabinets.
Art.-Nr. VEH4JQY
EKV3 35VI EK VEH4JQY
  • Loading
item

Earthing and short-circuiting device VI, earth clamp with flexible adjustable handle

Adjustable handle with two positions, clamping range up to 20 mm.
For cable distribution cabinets.
Art.-Nr. VE5K3HM
EKV3 35VI DG VE5K3HM
  • Loading
item

VI earthing handle

With dual function
  • For installing earthing cartridges with T connection into NH fuse holders
  • For connecting VI earthing and short-circuiting devices to earthing cartridges
    • Art.-Nr. 745922
    EG 00 4A VI
    • Loading
    •
    •
    item

    NH 00 earthing cartridges

    With T connection for installation into NH fuse holders and blocks of size NH 00 using a VI earthing handle.
    Art.-Nr. 745905
    EP NH00 VI TA
    • Loading
    •
    •
    item

    NH 4a earthing cartridges

    Art.-Nr. 745915
    EP NH4A VI TA
    • Loading
    •
    •
    item

    Earthing and short-circuiting device VI, earth clamp with flexible adjustable handle

    Adjustable handle with two positions, clamping range up to 20 mm.
    For cable distribution cabinets.
    Art.-Nr. V162LDM
    EKV3 25VI DG V162LDM
    • Loading
    item

    Earthing and short-circuiting device VI, spring-loaded earth clamp

    Clamping range up to 24 mm, installation via adjustable handle DGF EKV VI.
    For cable distribution cabinets.
    Art.-Nr. VMRSJWD
    EKV3 25VI EK VMRSJWD
    • Loading
    item

    Spring-loaded compact clamp

    With T connection and hexagon locking screw (WS 10) for use with earthing handle VI and fixing via adjustable handle with flexible shaft.
    Art.-Nr. 745503
    KK TA 0 24 SK10
    • Loading
    •
    •
    item

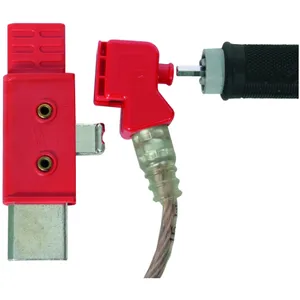

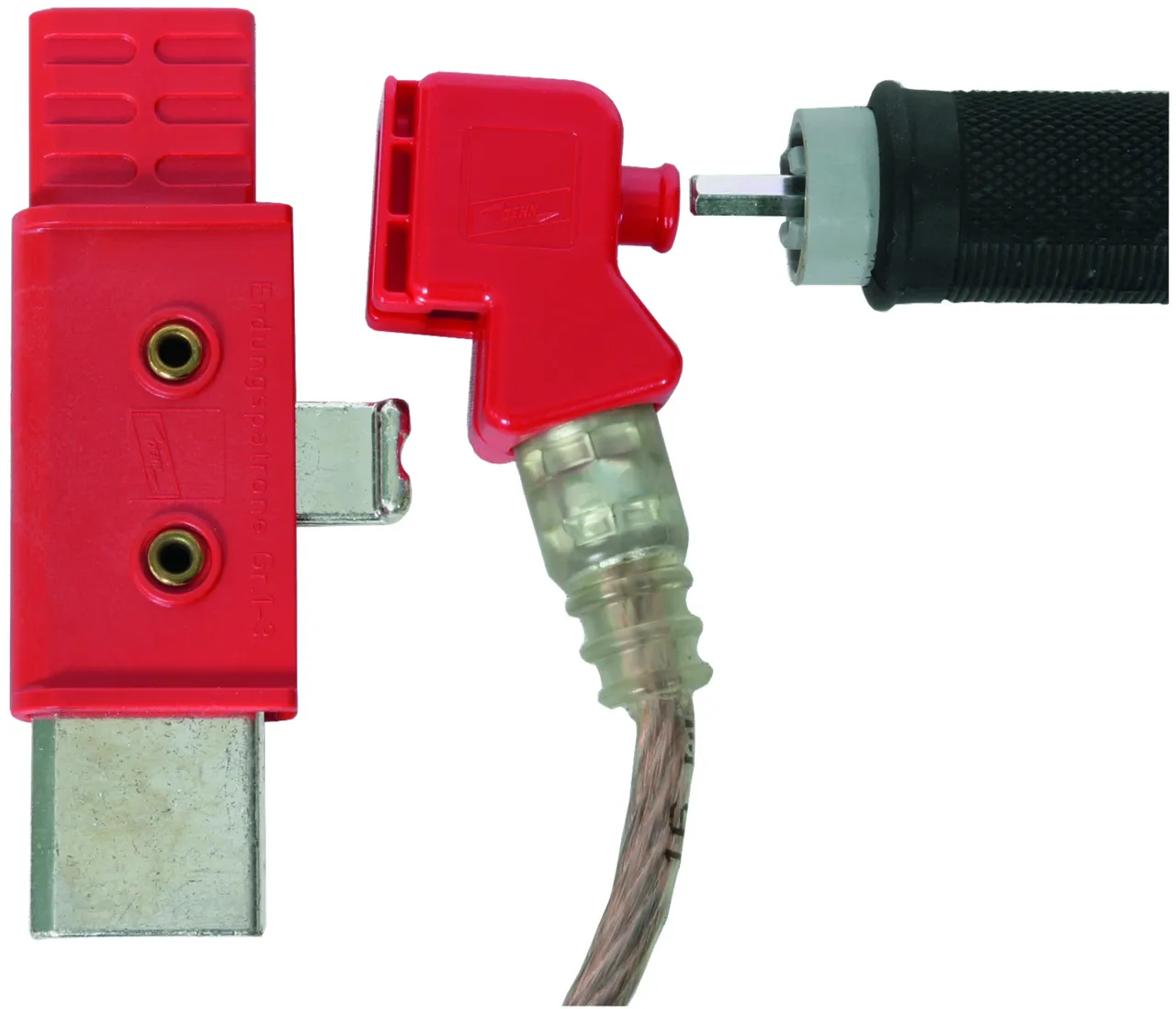

    NH 1 ... 3 earthing cartridges

    With T connection for installation into NH fuse holders and blocks of size NH 1 ... 3 using a VI earthing handle.
    Art.-Nr. 745910
    EP NH1 3 VI TA
    • Loading
    •
    •
    item

    Earthing adapter clamp for blade contacts

    The earthing adapter clamp is particularly suitable for short-circuiting the LV blade contacts in NH fuse strips having a blade width of 33 or 44 mm and a blade depth of 6 and 8 mm.
    With T connection and hexagon locking screw WS10.
    To be inserted by means of an earthing handle VI and to be fixed by means of an adjustable handle with flexible shaft.
    Art.-Nr. 745510
    EK SN7089
    • Loading
    •
    •
    item

    Earthing and short-circuiting device VI, spring-loaded earth clamp

    Clamping range up to 24 mm, attachment via adjustable handle DGF EKV VI.
    For service entrance boxes.
    Art.-Nr. VZPW9LG
    EKV3 16VI EK VZPW9LG
    • Loading
    item

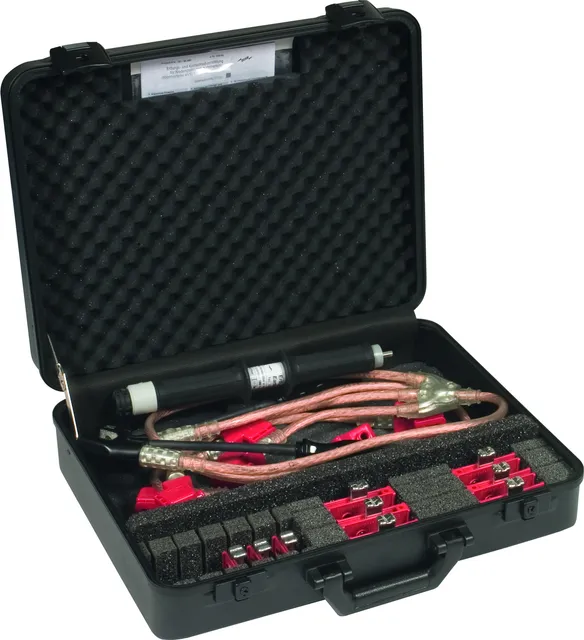

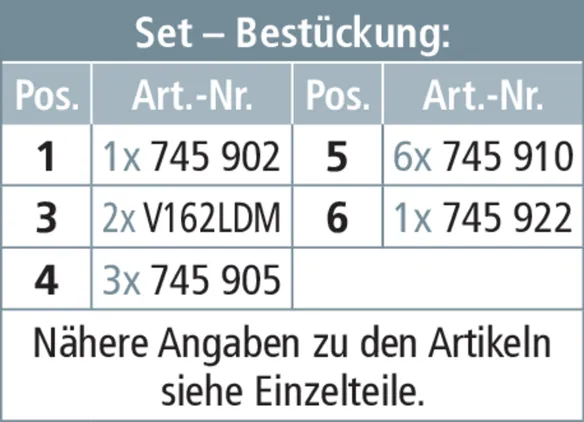

    Kit in Plastic Case

    Art.-Nr. 745903
    EKS VI 2F KVS KK
    • Loading
    •
    •
    item

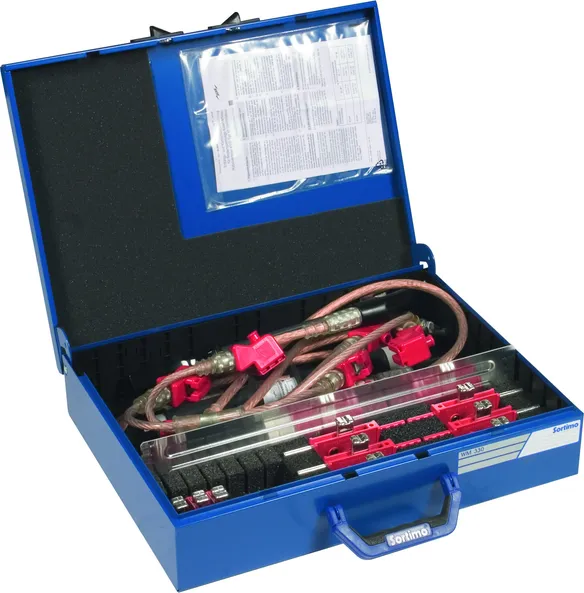

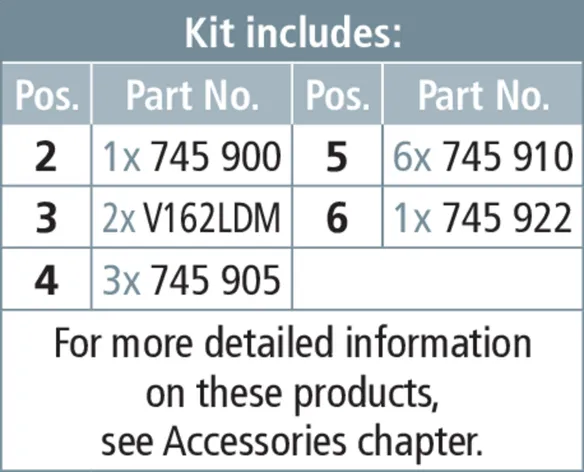

    Kit in Sheet Steel Case

    Art.-Nr. 745901
    EKS VI 2F KVS SBK
