Providing protection against adjacent live parts
Insulating protective shutters, insulating mats, insulating blankets and covering caps are used for protecting against accidental contact with live parts of an installation.

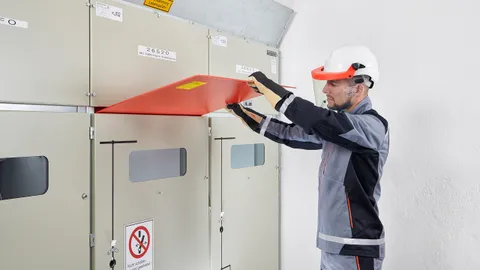

Insulating protective shutters up to 36 kV
Insulating protective shutters in accordance with DIN VDE 0682-552 provide protection against accidental contact with live parts of an installation at the work location in accordance with EN 50110 (DIN VDE 0105-100).

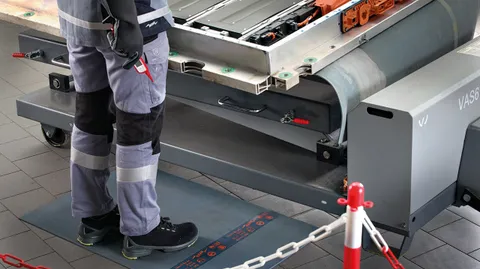

Insulating mats up to 1,000 V
Rubber insulating mat as per EN/IEC 61111 for standing surface insulation for live working up to 1,000 V or in proximity to live installations.

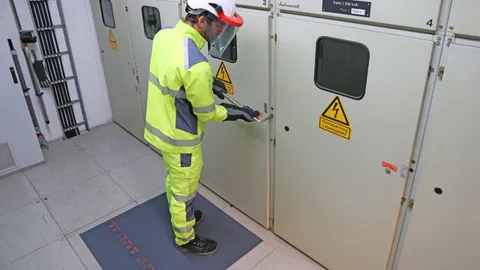

Insulating mats up to 36 kV
Rubber insulating mat as per EN/IEC 61111 for standing surface insulation for live working up to 36 kV or in proximity to live installations.

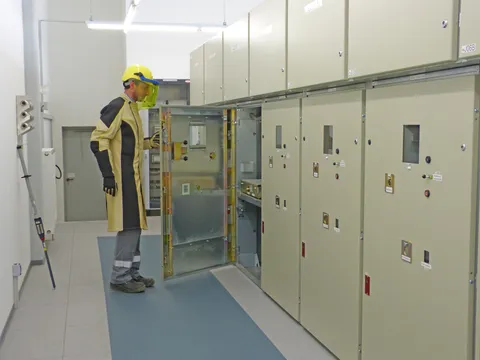

Insulating mats with dielectric strength 50 kV
Insulating mats for use in electrical switch and test rooms. Dielectric strength 50 kV tested in accordance with DINVDE 0303, part 21.
NOTE: Not permitted as standing surface insulation for live working.
NOTE: Not permitted as standing surface insulation for live working.

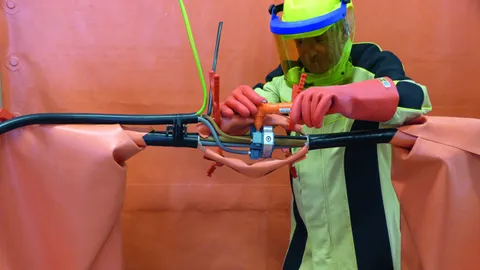

Insulating blankets up to 1,000 V
For protection against accidental and direct contact with live parts.
Insulating caps up to 1,000 V
For insulating bare ends of electrical lines.
