Insulating enclosures
- Lightning-impulse-current-tested insulating enclosure for arresters
Sealing Device
For sealing between the lower and upper part of IGA 12 and IGA 24 insulating enclosures (doors can be sealed without additional part).
Art.-Nr. 902317
PLOV IGA 12 24
item

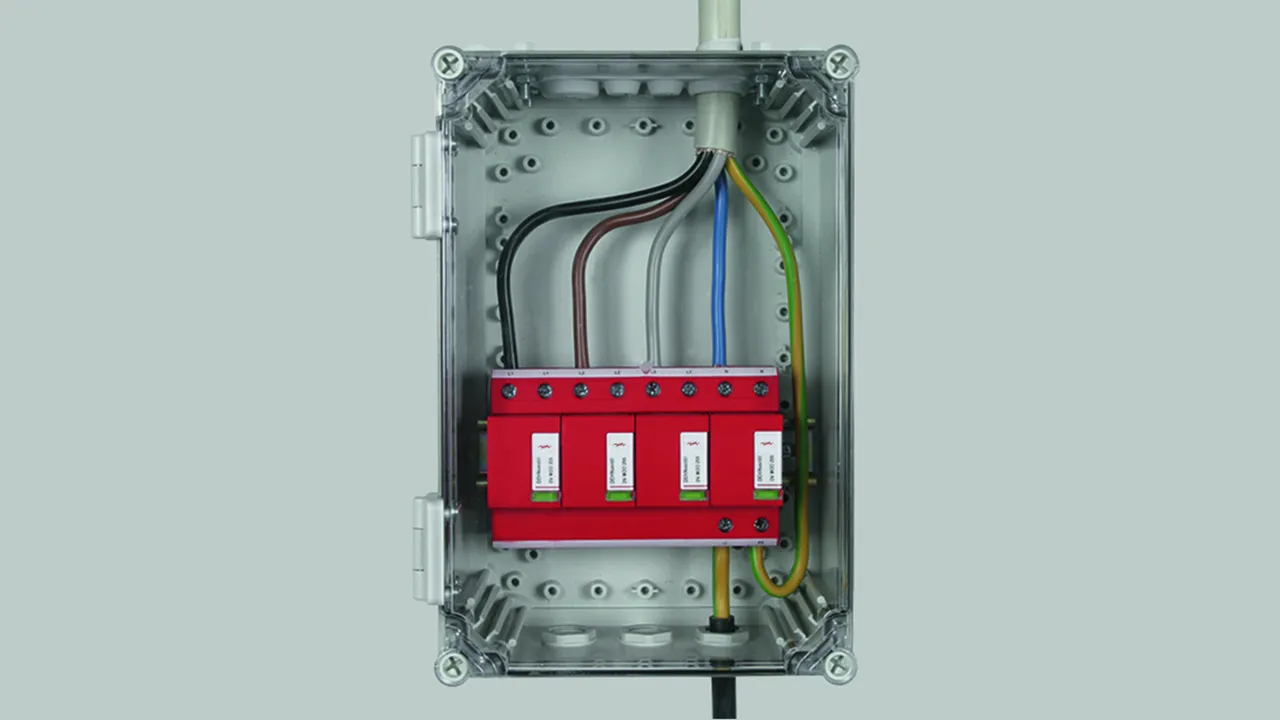

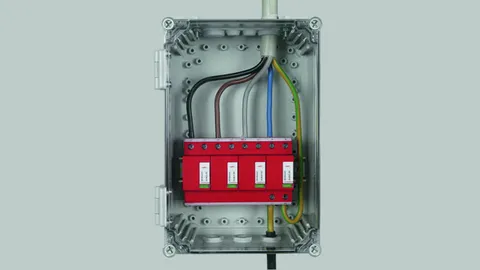

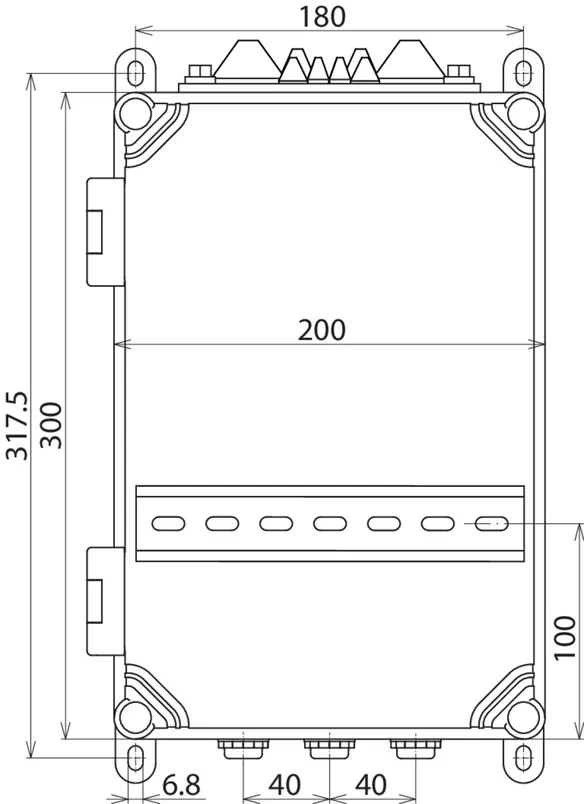

IGA 10 V2 IP54
Lightning-current-tested insulating enclosure with a max. capacity of ten modules; with grommet flange for 11 EPDM cables (Ø5-30 mm) and three mounted M20 grommet openings with lock nut; ideally suited for series connection.
Art.-Nr. 902315
IGA 10 V2 IP54
item

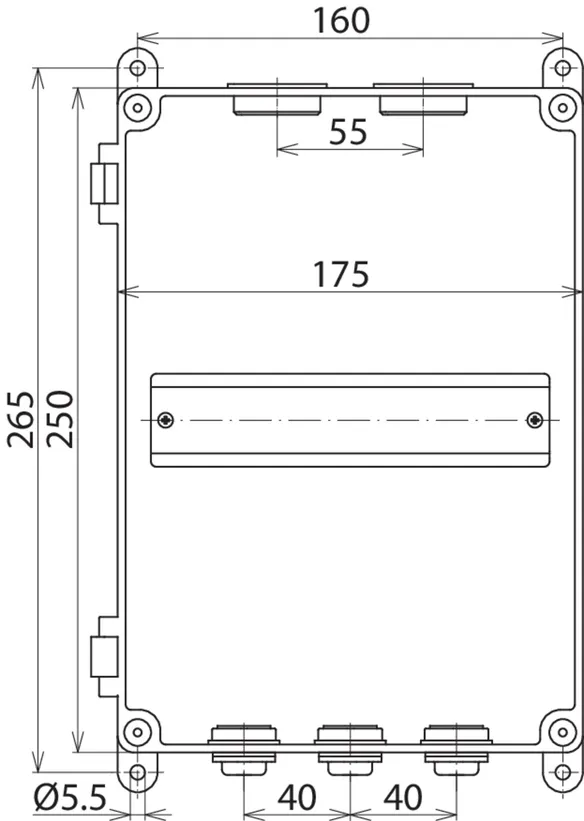

IGA 7 IP54
Lightning-current-tested insulating enclosure with a max. capacity of seven modules; with EPDM grommet flange for two cables (Ø1-25 mm) and three mounted M20 grommet openings with lock nut; ideally suited for series connection.
Art.-Nr. 902314
IGA 7 IP54
item

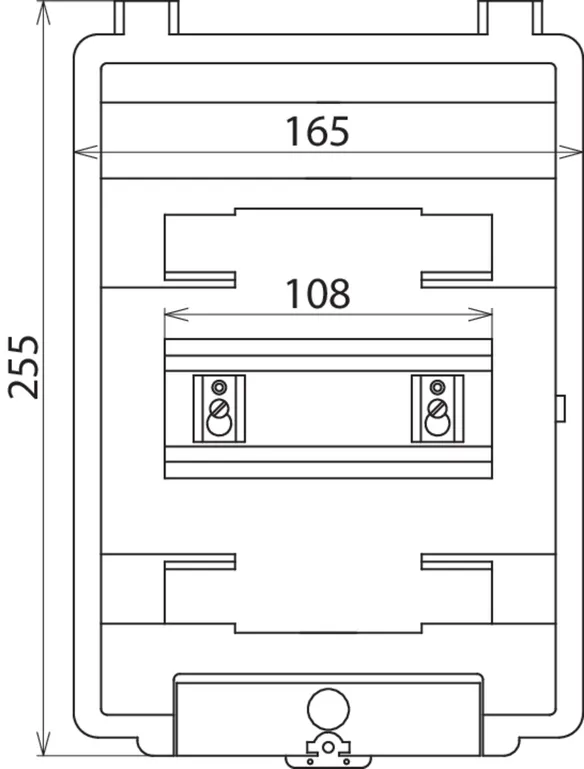

IGA 6 IP54
Lightning-current-tested insulating enclosure for arresters with a capacity of six modules; with knockouts for cable entry and plug-in glands; ideally suited for feed-through wiring.
Art.-Nr. 902485
IGA 6 IP54
item

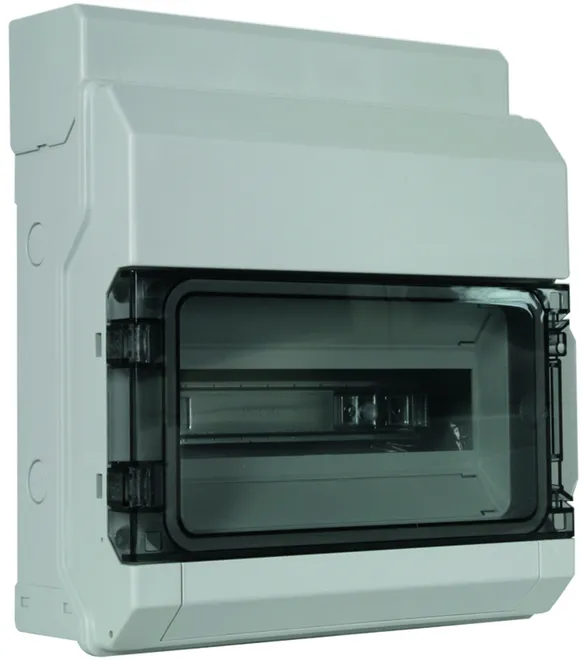

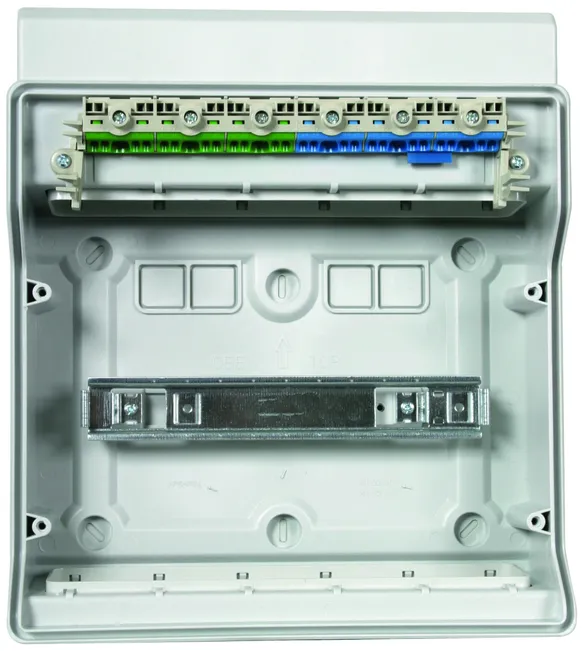

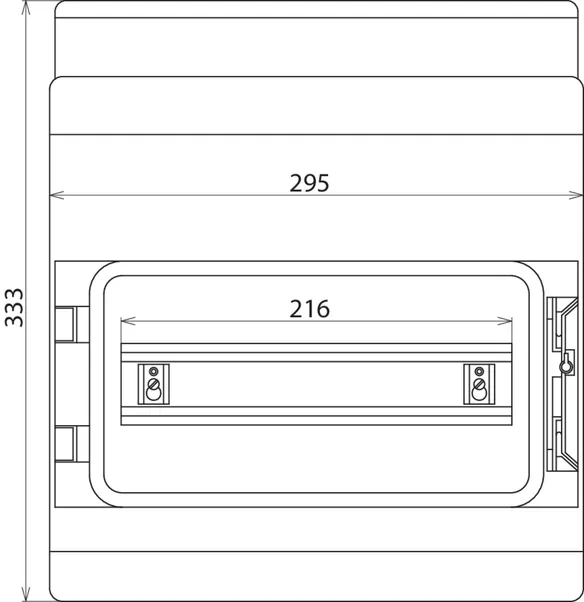

IGA 12 IP54
Insulating enclosure for arresters with a capacity of 12 modules; with integrated, elastic seal membrane for cable entry; ideally suited for feed-through wiring.
Art.-Nr. 902471
IGA 12 IP54
item
IGA 12 IP65
Insulating enclosure for arresters with a capacity of 12 modules; with integrated, elastic seal membrane for cable entry; ideally suited for feed-through wiring.
Art.-Nr. 902316
IGA 12 IP65
item

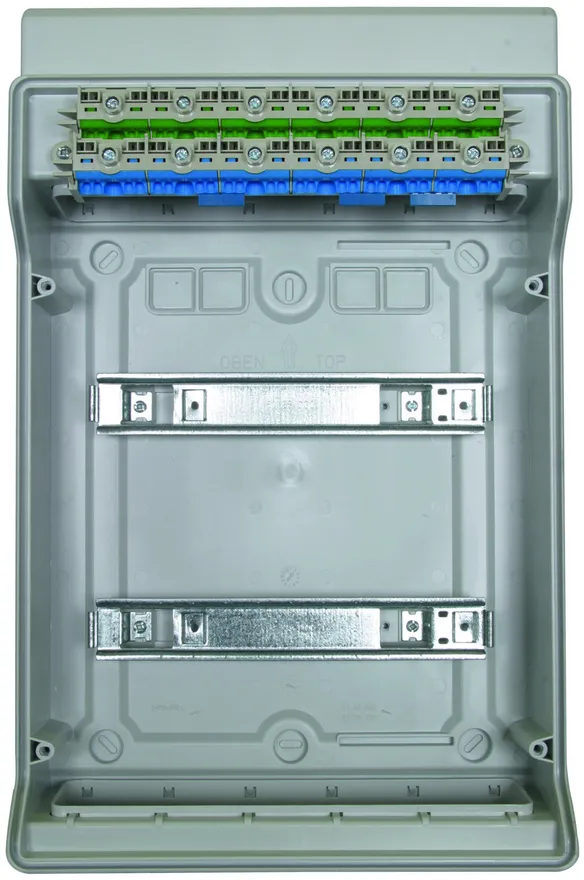

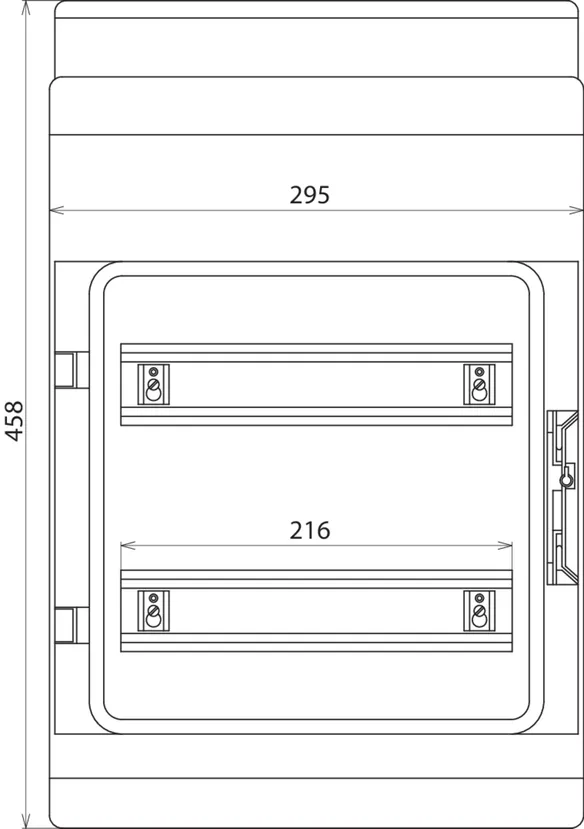

IGA 24 IP54
Insulating enclosure for arresters with a capacity of 2x 12 modules; with integrated, elastic seal membrane for cable entry; ideally suited for feed-through wiring.
Art.-Nr. 902472
IGA 24 IP54
item
