Earthing Material for Telecommunications

Earthing materials for mobile military communications including connecting lines, earth clamps and earth spikes.

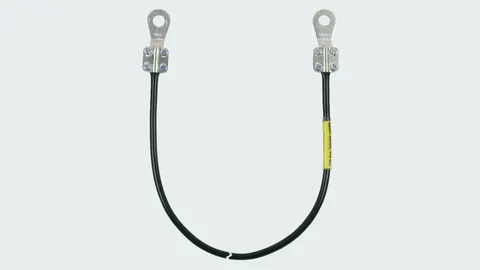

Earthing Cables with Cable Lugs open

Highly flexible copper conductor, frost-resistant, UV-stabilised.
Packing in accordance with VG 96927-11.

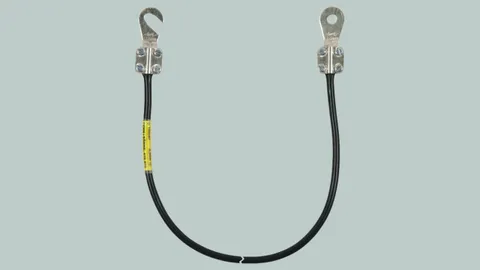

Earthing Cables with Cable Lugs open / closed

Highly flexible copper cable, frost-resistant, UV stabilised.
Packing in accordance with VG 96927-11.

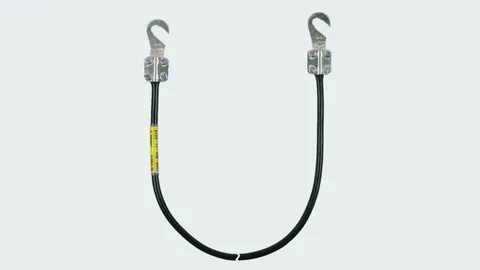

Earthing Cables with Cable Lugs closed

Highly flexible copper cable, frost-resistant, UV stabilised.
Packing in accordance with VG 96927-11.

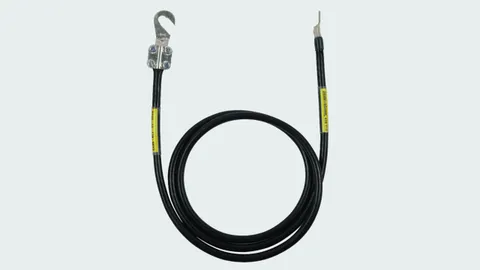

Earthing Cables with Cable Lug / Pin Cable Lug

Made of highly flexible copper conductor, frost-resistant, UV-stabilised.
Packing in accordance with VG 96927-11.

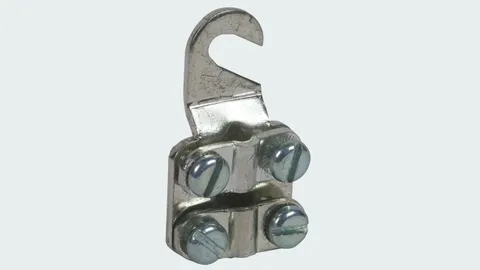

Earthing Cable Lugs

For mounting on site with integrated strain relief (second half of clamping part).Please observe the following parameters for mounting:
  • Stripping approx. 15 mm
  • Wire end ferrule acc. to DIN 46228
  • Tightening torque of the locking nut screws ≥ 3 Nm

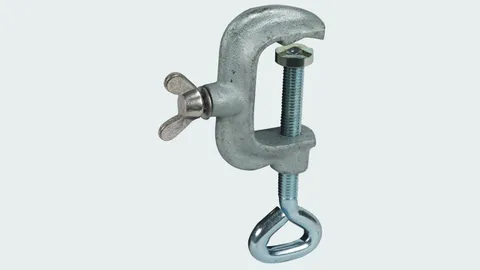

Earthing Clamps

For connecting earthing conductors to pipes.

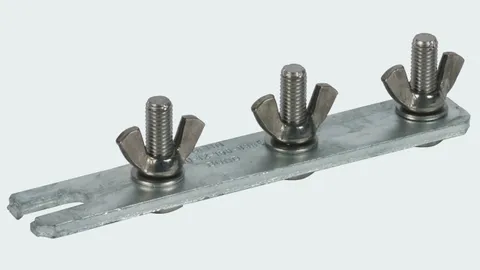

Earthing Busbars

With slot and anti-rotation protection, for fixing to the earthing pipe.

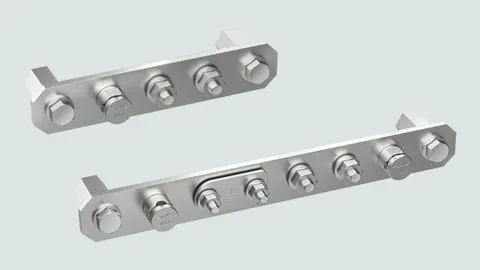

Equipotential bonding bars – telecommunication systems

Earthing busbars made of (V4A) stainless steel – robust and durable solutions for earthing connections in telecommunication systems. Available with 6 or 3 connecting points, they offer maximum flexibility and easy installation thanks to KS connectors and screw-nut fixing.

Approval: as per VG 96953-7

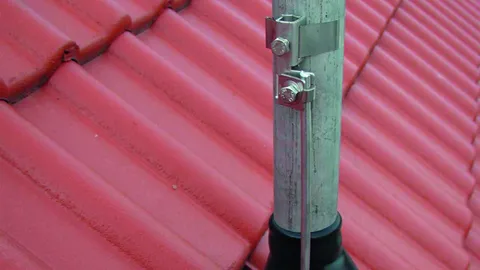

Antenna earthing – telecommunication systems

Pipe clamp for lighning equipotential bonding of pipes (e.g. antenna poles) according to IEC/EN 62305-3.

With gradually adjustable tensioning strap, for connecting one or two conductors and suitable for through-wiring.

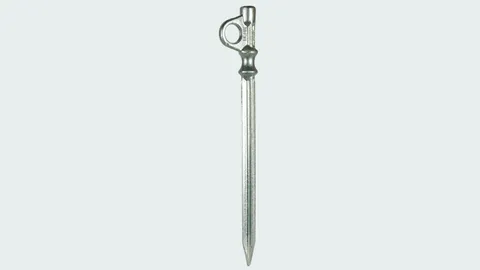

Earthing Spikes

For earthing mobile objects such as vehicles, power generators, etc.

Anchoring Pole

For guying rod sections and batten shears, e.g. when traversing telecommunication cables.

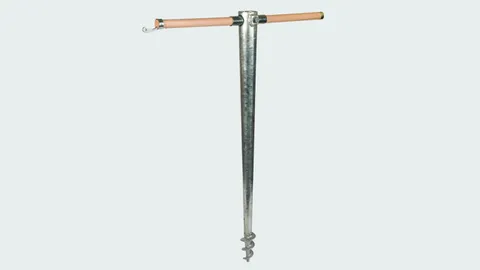

Earthing Pipe with Drilling Spiral

For earthing mobile objects such as vehicles, power generators, etc.Detachable turning handle.Consisting of:Turning handle (Part No. 462 058 military name VG 96953 T10 AB001 stock No. 5975-12-133-7084)Earthing pipe (Part No. 462 060 military name VG 96953 T10 AA001 stock No. 5975-12-133-7271)Clamp body with knurled screw (Part No. 644 099 military name VG 96953 T10 AC001 stock No. 5975-12-399-5493
