Flat Roof – Roof Conductor Holders, Bridging Braids

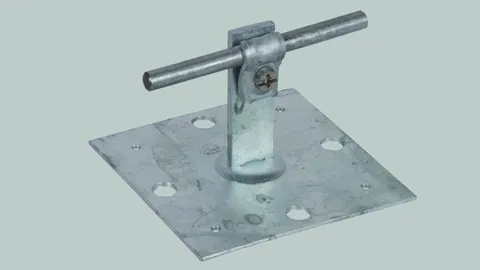

Roof conductor holders for attaching round conductors and strips (with adapter) to flat roofs.

• Conductor holder with weather-resistant plastic support plate, UV-stabilised and halogen-free
• Frost-resistant concrete block in accordance with EN 1338 for paving stones, frost resistance tested according to EN 1340 (frost/dew test)
• Concrete block and base part are recycled separately

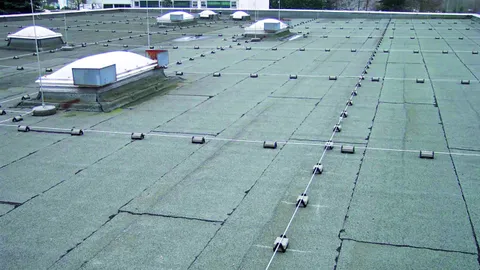

For installing air-termination systems on flat roofs and walls.

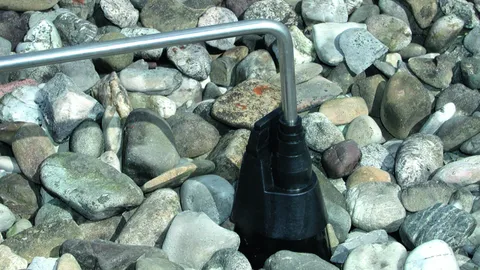

For leading down conductors through roofs and for sealing roofs.

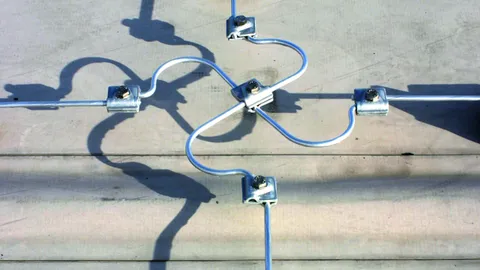

For temperature-related length compensation of long conductors (provided that the conductor routing in the holders is loose).

For connection (riveting or screwing) of metal cladding.

Application note:

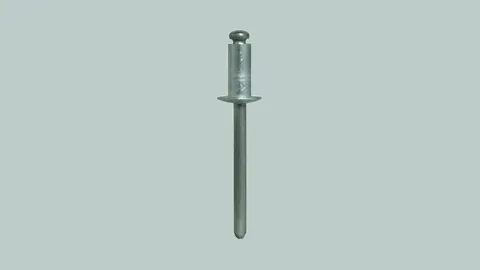

According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt self-tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.

Suitable for connecting metal claddings (riveting or screwing) as an expansion compensation piece for round wires; or as compensation for certain temperature-related changes in length for round wires; Connection e.g. with KS connector part no. 301 019

Application note:
According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.

Suitable for connecting / bridging metal claddings using screws, or as compensation for certain temperature-related changes in length for round wires; connection e.g. with KS connector part no. 301 019.

Application note:
According to DIN EN 62305-3 Suppl. 1, two rivets Ø6 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt self-tapping screws Ø6.3 mm (on both sides) for material of ≥ 2 mm thickness.

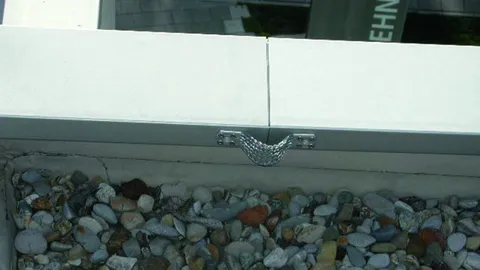

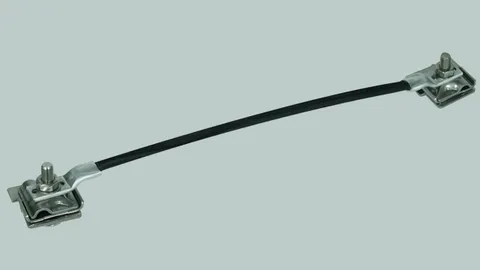

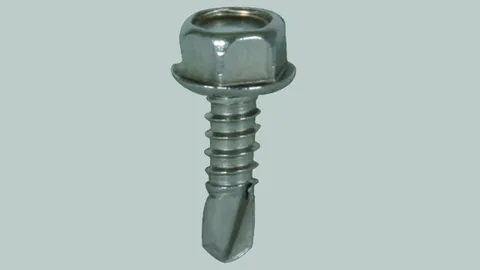

Self-tapping with hexagon head and collar, for connecting bridging brackets, braids or cables, e.g. to the metal capping of the roof parapet (for materials of ≥ 2 mm thickness).

With StSt pin for connecting bridging brackets, braids or cables, according to DIN EN 62305-3 Suppl. 1.

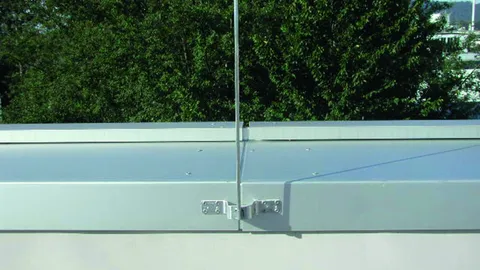

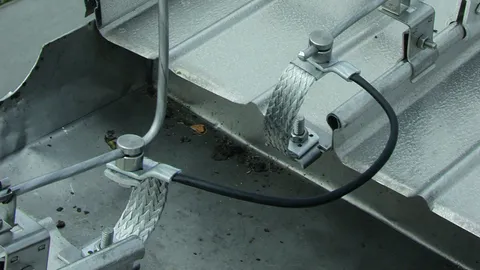

For connecting or bridging metal cladding (e.g. parts of the capping of the roof parapet) without drilling

• With one clamping plate each, e.g. for connection to the air-termination system and erection of air-termination tips (Rd 8-10 mm)
• For the seams of the capping of the roof parapet with an angle of 0-45° and a max. length up to 18 mm

Your benefit: The design avoids soiling by drilling chips!

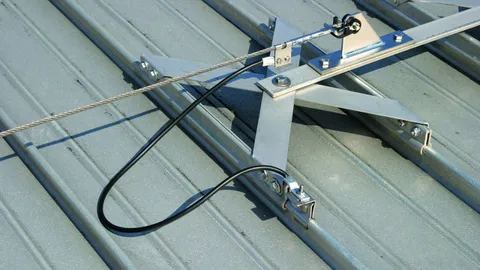

System for connecting the safety rope systems on roofs with the air-termination system; with premounted connection lug for the safety rope and clamping frame.
