HVI light Conductor

High-voltage-resistance insulated down conductors for maintaining the separation distance from conductive parts. For use up to an equivalent separation distance s ≤ 45 cm (in air) or s ≤ 90 cm (solid material).

HVI light Conductor

System for maintaining the separation distance, e.g. on flat roofs. The high-voltage-resistant, insulated HVI light Conductor prevents uncontrolled
flashover to metal or electric components underneath the roofing.

For use up to an equivalent separation distance s ≤ 45 cm (in air) or s ≤ 90 cm (solid material).

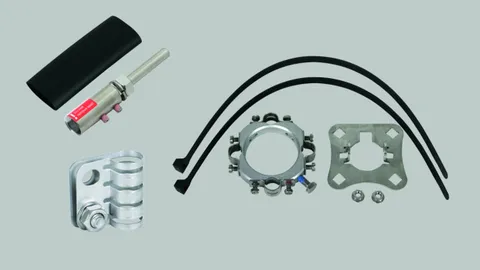

Connection Elements for HVI light Conductors

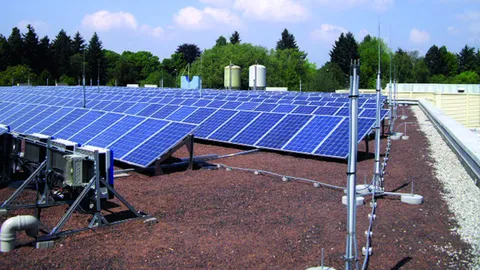

Air-termination Masts for HVI light Conductors on Flat Roofs

Includes connection plate plate for four HVI light Conductors and fixing kit for mounting the conductors on the air-termination mast.
Adjustable to roof inclination up to max. 10°.
Concrete bases (weight 17 kg) and base plates have to be ordered separately.

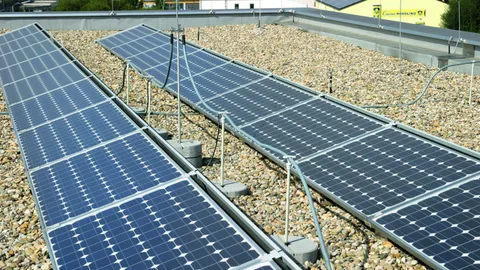

Conductor Holder and Accessories for Installation on Flat Roofs / Metal Roofs

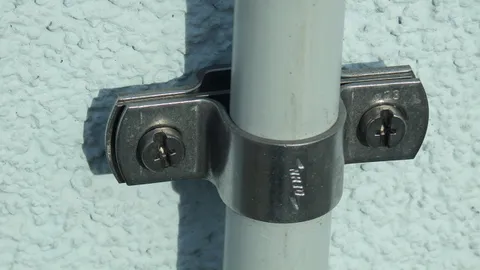

Wall-mounted Conductor Holders

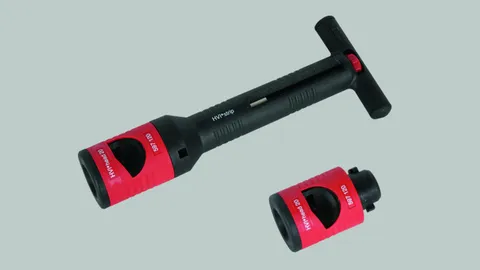

Stripping tool for HVI light Conductors / HVI Conductors

Tool for stripping the semi-conductive sheath and the PE insulation of the HVI light Conductor, HVI Conductor (outer diameter 20 mm).
  • Tool consists of a handle and various exchangeable cutting heads
  • Stripping length of HVI light Conductor, HVI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length set.
HandlingPosition the cutting head at the cut-off end of the conductor and turn clockwise with light pressure to cut/strip it. The cutting head can be exchanged without tools via the bayonet coupling.

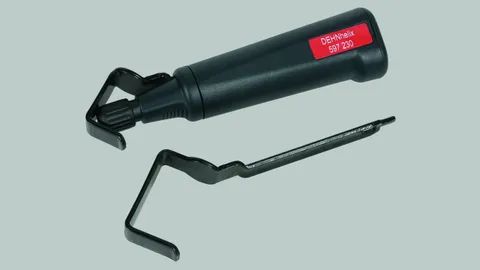

Stripping Tool for HVI light Conductors / HVI Conductors

Tool for stripping the additional grey sheath of the HVI light Conductor and HVI Conductor. DEHNhelix consists of a handle and an exchangeable bracket (depending on the conductor diameter).

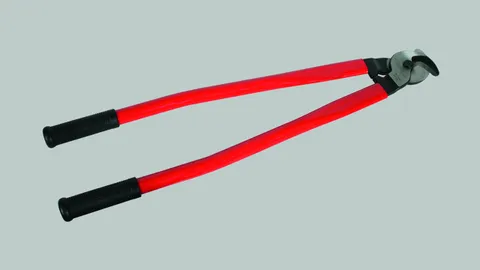

Cable shears for HVI Conductors

Cable shears for easily cutting the HVI light Conductor, HVI Conductor (outer diameter 20 / 23 mm), HVI power Conductor (outer diameter 27 mm) and CUI Conductor to length.
The special design of the cable shears also allows precise cutting of stranded conductors, making it easier to attach connection elements.
