Components for Foundation Earth Electrodes

In accordance with the German standard DIN 18014: 2014-03 Fundamenterder – Planung, Ausführung und Dokumentation (Foundation earth electrode - Planning, execution and documentation), foundation earth electrodes have to be connected with the reinforcement of the foundation plate at intervals of metres. Among the various connection possibilities clamping connections have turned out to be the most economic as they can be implemented quickly and easily on site.

Amongst others, reinforcing steels shall also be used as natural components of the down conductor system according to the current lightning protection standards. The table provides an overview of the nominal and outer diameters as well as the cross sections of the reinforcing steels according to DIN EN 10080: 2005 (see Figure 1).

For connecting reinforcing steel mesh or reinforcements with round and flat conductors.
Arrangement: (II) = parallel (+) = cross

Quick and safe:
DEHNclip rebar clamp for quick connection of the earth electrode to the reinforcement without tools. DEHNclip is tested for a lightning current carrying capability of 50 kA (10/350 µs) in accordance with EN 62561-1.

In accordance with the German standard DIN 18014: 2014-03 Fundamenterder – Planung, Ausführung und Dokumentation (Foundation earth electrode - Planning, execution and documentation), foundation earth electrodes have to be connected with the reinforcement of the foundation slab at intervals of 2 metres. Of the various connection possibilities, clamp connections have turned out to be the most economic as they can be implemented quickly and easily on site.

According to the current lightning protection standards, reinforcing steels should, among other things, be used as natural components of the down conductor system. The table below provides an overview of the nominal and outer diameters as well as cross sections of the reinforcing steels DIN EN 10080: 2005.

For connecting reinforcing steel meshes or reinforcements with round and flat conductors.
Arrangement: (II) = parallel (+) = cross

For connecting round and flat conductors in the concrete foundation.
For T, cross and parallel connections, without having to insert the conductor.

Arrangement:
(II) = parallel
(+) = cross

For connecting round and flat conductors in the concrete foundation or reinforcing steel meshes and reinforcements with round and flat conductors.

Arrangement:
(II) = parallel
(+) = cross

For T, cross and parallel connections for use in concrete foundations.

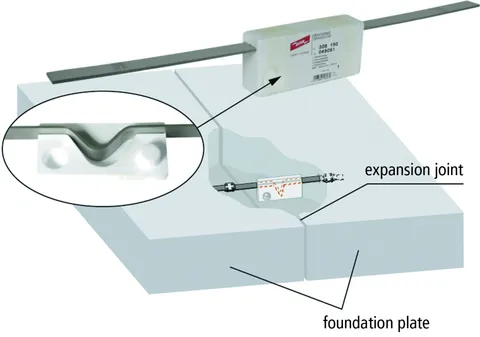

For leading the foundation earth electrode through the expansion joints of large foundations (several sections). It is not necessary to lead the earth electrode out of the base plate.

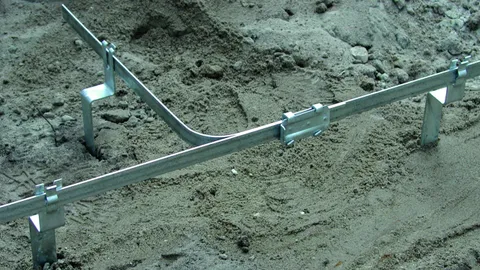

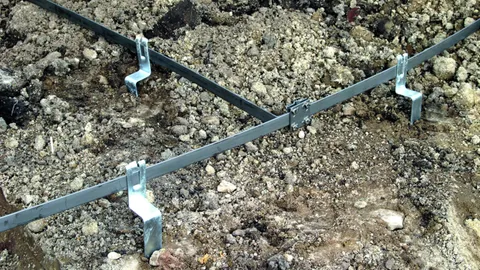

For the installation of earthing conductors in the foundation slab.
With catch lug to avoid loosening of the conductor.
