Measuring Devices, Tools, Accessories

Accessories for straightening round and flat conductors. Measuring equipment for testing earth-termination systems. Insulating and corrosion protection material for clamping points/connections in the soil.

Earth Resistance Meter MI 3123

For all kinds of earth resistance measurement, such as the 4-conductor method (Wenner method) for measuring the soil resistivity and resistance measurements in earth-termination systems.Accessories:
  • Power supply adapter + 6 batteries NiMH AA
  • CD with instruction manual and handbook
  • Calibration certificate for first calibration
  • PC software Euro Link Pro PLUS according to ZVEH for Smartec incl. USB/RS232 cable
  • Padded carrying bag and hand strap
The earthing test leads, test clamps and augers must be ordered separately.

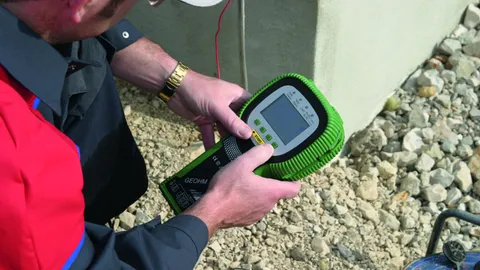

Earth Resistance Meter GEOHM C

For measuring the earth resistance and soil resistvity, with automatic selection of the measuring range and checking of sensor and auxiliary earth electrode resistance.

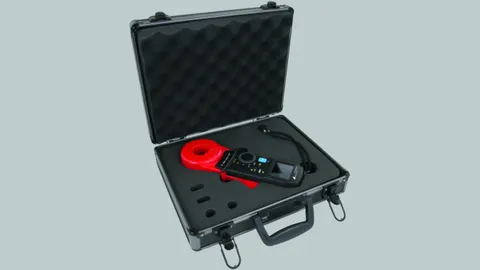

Earth Resistance Meter Metraclip Earth

For earth loop measurement.
Easy handling, high-resolution OLED display.
Automatic calibration, Bluetooth interface incl. software.

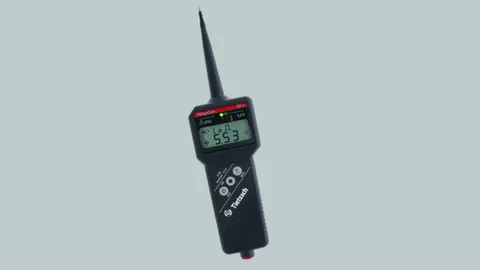

EP4 Continuity Tester

Continuity tester for measuring the resistance of e.g. air-termination and down conductors and subsequently installed reinforcing bars of buildings. The tester is suited for measuring the resistance of earth-termination systems according to DIN 18014 with a test current of 200 mA.

Case with Measuring Accessory for Continuity Tester

For storing the continuity tester and measuring accessories.Equipment includes:
  • 2 coilers with unwinding handle and 50 m measuring line, blue, with banana pin, Part No. 585 320
  • 1 measuring line 0.75 mm², 3 m long, black, with banana pin on both sides, Part No. 545 020
  • 1 test clamp, clamping range 2-21 mm, Part No. 588 000

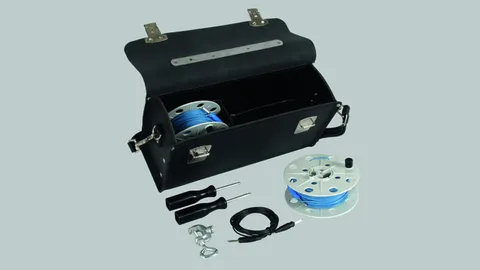

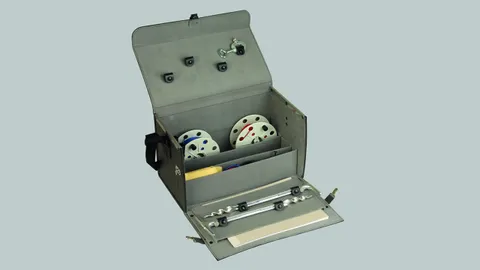

Earth Resistance Measuring Equipment in a Case

Case with shoulder strap for easy transport.Equipment includes:
  • 1 coiler with unwinding handle and 25 m red measuring line with banana pin, Part No. 585 310
  • 1 coiler with unwinding handle and 50 m blue measuring line with banana pin, Part No. 585 320
  • 2 auger drills, 350 mm long, Part No. 587 460
  • 2 black measuring lines 0.75 mm², 3 m long, with banana pin on both sides, Part No. 545 010 (connection between earth-termination system and earth resistance meter)
  • 1 red measuring line 0.75 mm², 0.5 m long, with banana pin on both sides, Part No. 545 010
  • 1 blue measuring line 0.75 mm², 0.5 m long, with banana pin on both sides, Part No. 545 011 (connection between coiler and auger drill)
  • 1 test clamp, clamping range 2-21 mm, Part No. 588 000
With storage compartment for Metrel MI 3123 or GEOHM C measuring device.

Wire Straighteners

For straightening round conductors made of different materials (HDG steel, Cu and Al).

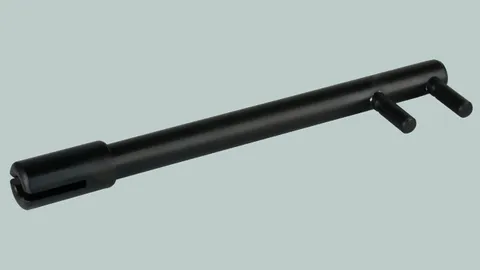

Straightening Tool

For bending and straightening conductors.

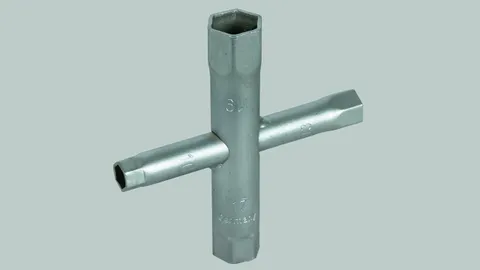

Spider Wrench

Universal use for installing lightning protection systems. With four wrench sizes.

Anti-Corrosion Tape

For wrapping aboveground and underground connections.
In reels, length 10 m, UV-stabilised.

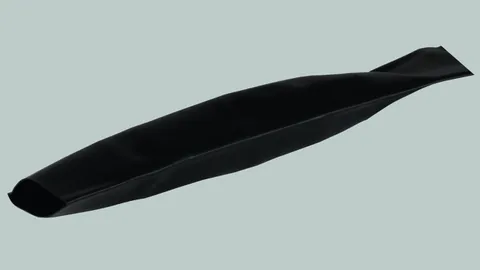

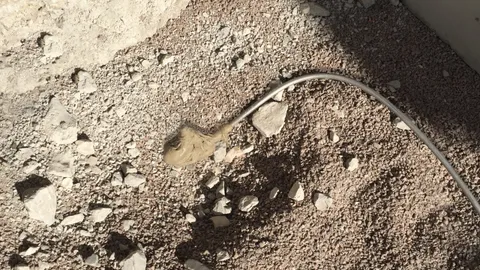

Heat-Shrinkable Sleeve

Heat-shrinkable sleeve for coating Rd and Fl conductors, e.g. when leading terminal lugs out of the concrete or earth entries out of the ground.
UV-stabilised, customised length.
