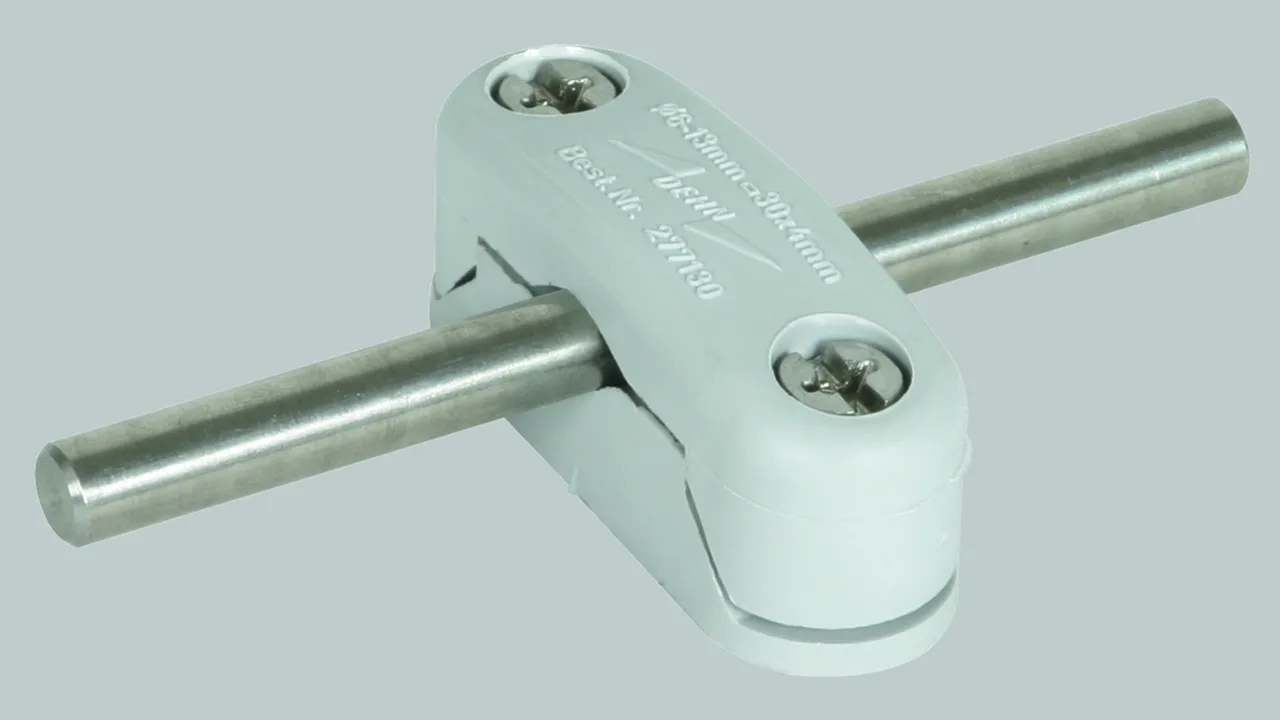

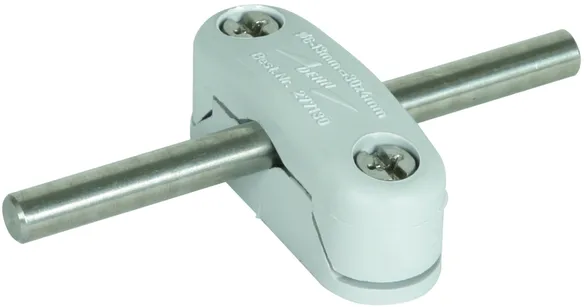

Conductor Holder

Conductor holder for installing round and flat conductors for equipotential bonding, e.g. in transformer stations, processor rooms.
Insulated conductor holder.

1 Product

Part No. 277130 LH 6.13 FL30 B10 K GR

GTIN 4013364022669, Customs tariff No. (EU): 85389099, Gross weight: 30.00 g, PU: 50.00 pc(s)


Images

Additional information

Conductor holder for installing round and flat conductors
Conductor holder
For installing round and flat conductors
For equipotential bonding, e.g. in transformer stations,
processor rooms
Insulated conductor holder

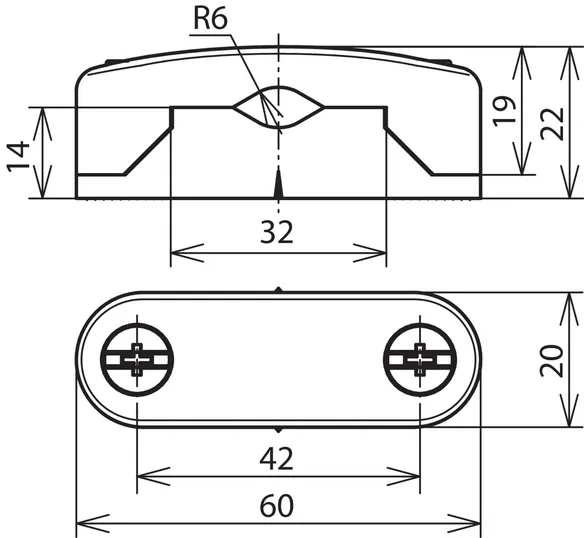

Conductor support Rd / Fl: 6-13 / 30 x 4 mm
Fixing : Ø10 and 6 x 19 mm
Material: plastic
Colour: grey ●

Brand: DEHN
Type: LH 6.13 FL30 B10 K GR
Part No.: 277130
or equivalent.



Technical data

Conductor support Rd / Fl 6-13 / 30 x 4 mm
Fixing Ø10 and 6 x 19 mm
Material plastic
Colour grey
