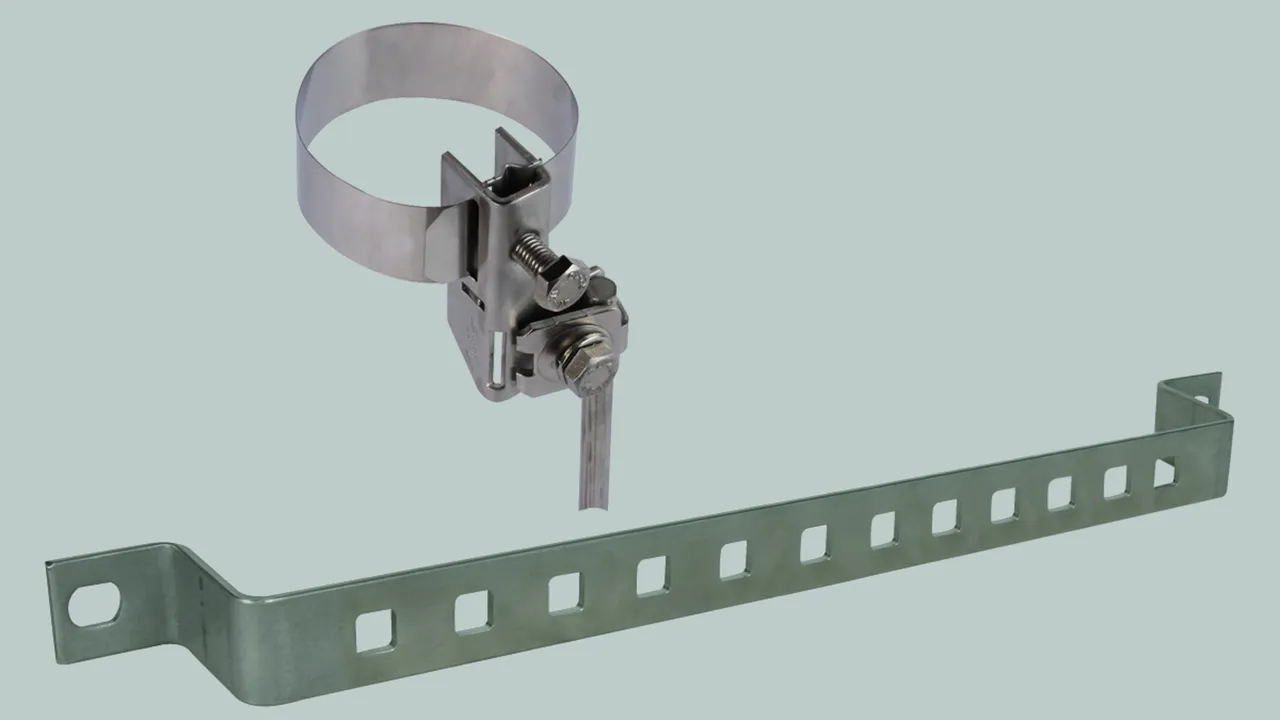

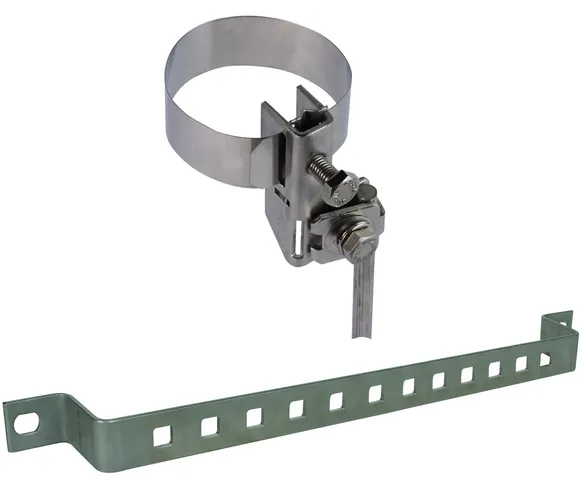

Mounting set with direct clamping of round material

1 Product

Part No. 540111 BRS 16.168 ES 12AP V2A SET

GTIN 4013364451315, Customs tariff No. (EU): 85359000, Gross weight: 653.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Mounting set with direct
clamping of round material and
solid/stranded conductors

Brand: DEHN
Type: BRS 16.168 ES 12AP V2A SET
Part No.: 540111
or equivalent.

Technical data

Pipe clamp
Material	StSt
Clamping range pipe Ø	16-168 mm (³/₈-6'')
Earthing busbar
Cross-section	105 mm²
Connection holes	11 x 11 mm

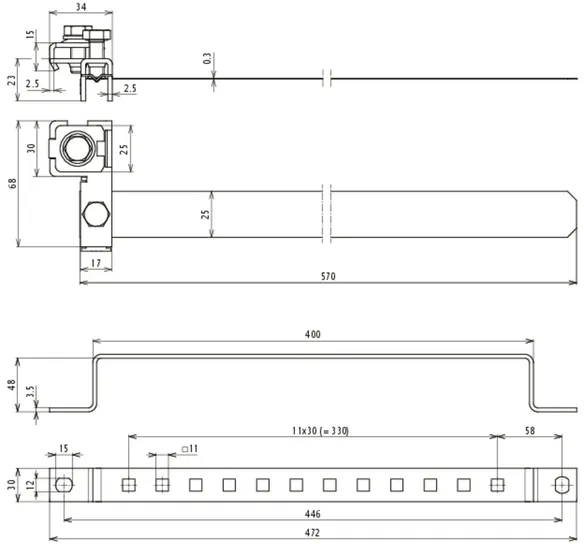

Dimensions (l x w x d1)	472 x 30 x 3.5 mm

Pipe clamp
Material	StSt
Clamping range pipe Ø	16-168 mm (³/₈-6'')
Dimensions of strap (l1 x w x d)	570 x 25 x 0.3 mm
Connection Rd	1-2 conductors Rd Ø6-8 mm / 1x Ø10 mm
Connection (solid / stranded)	4-50 mm²
Screw	di M8 x 20 mm
Material of screw	StSt
Standard	EN 62561-1
Earthing busbar
Cross-section	105 mm²
Connection holes	11 x 11 mm
Dimensions (l x w x d1)	472 x 30 x 3.5 mm
Fixing	[2x] 12 x 15 mm
