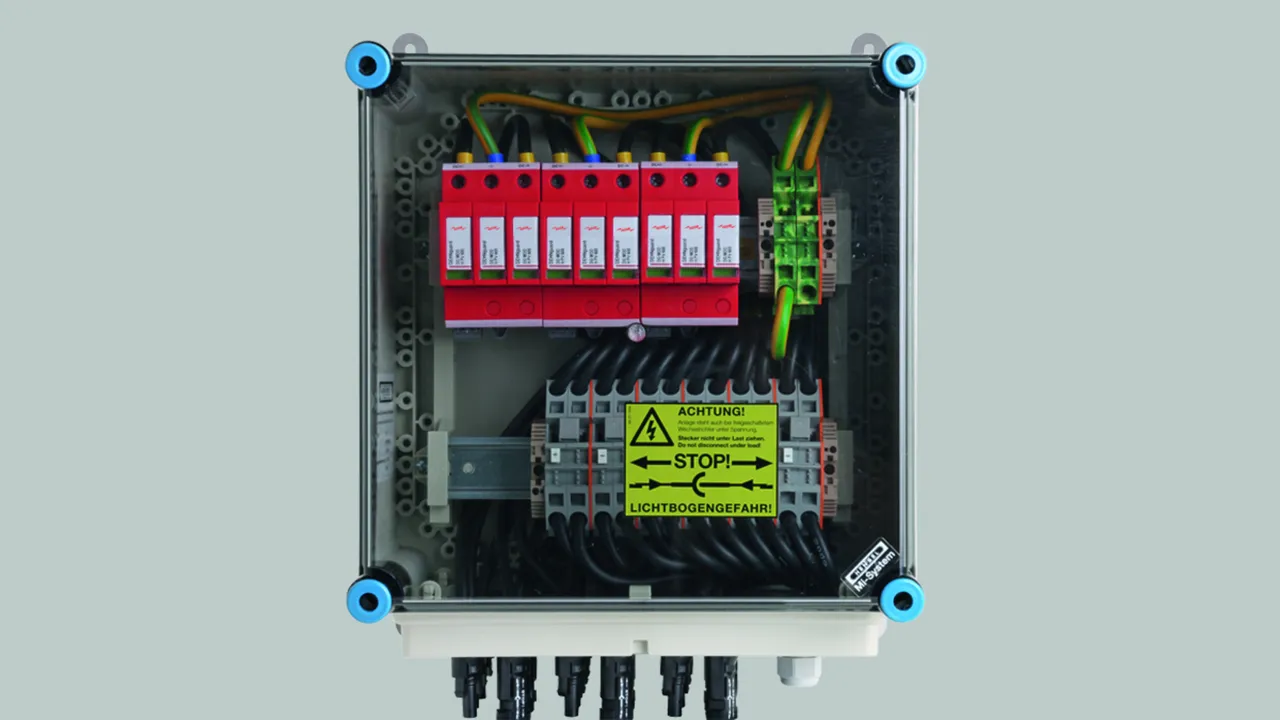

DEHNguard modular YPV ... FM

Prewired complete unit for photovoltaic systems consisting of a base part and plug-in protection modules
Fault-resistant Y circuit with three heavy-duty varistors prevents damage to the surge protective device in case of insulation faults in the generator circuit
Tested to EN 50539-11
High reliability due to "Thermo Dynamic Control" disconnector
Fault indication by red indicator flag in the inspection window
Suitable for use in accordance with IEC 60364-7-712 [Photovoltaic (PV) power systems]

DEHNguard M YPV ... FM

Modular multipole surge arrester for PV systems with remote signalling contact for monitoring device (floating changeover contact).

2 producten

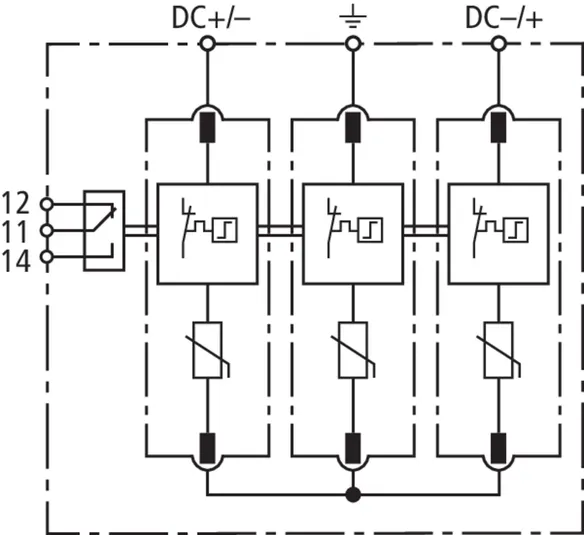

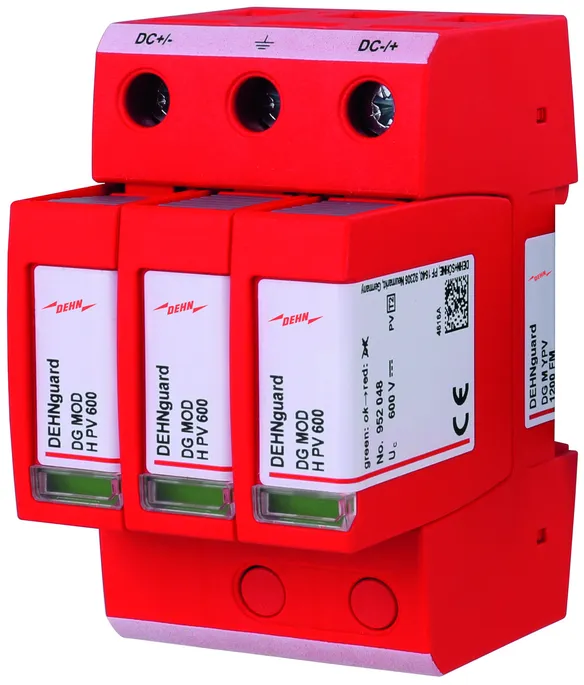

Artikelnr. 952565 DG M YPV 1200 FM

GTIN 4013364327719, CCT: 85363030, Brutogewicht: 325.00 g, VPE: 1.00 Stk

Afbeeldingen

Aanvullende informatie

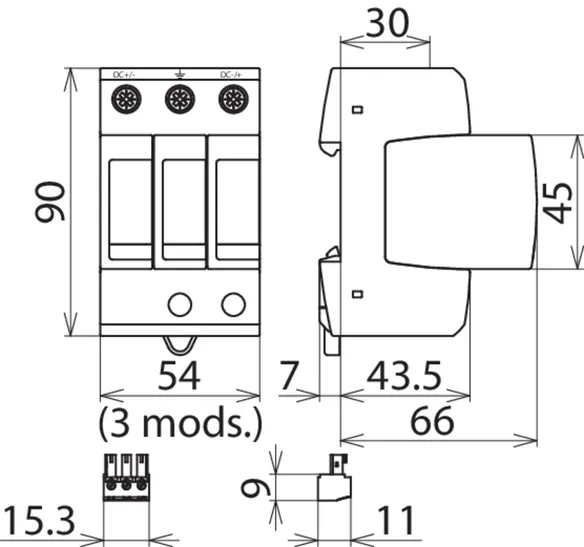

CAD files

DEHNguard M YPV 1200 surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems
up to 1170 V d.c., width: 3 modules
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Max. PV voltage: <= 1170 V d.c.
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 10 kA

null: DG M YPV 1200 FM
null: 952565

Certificaten

Technische gegevens

SPD according to EN 50539-11	type 2
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 50539-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 50 kA (t ≤ 4 ms)
– Required backup fuse	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040

Product is toegevoegd aan kladblok

Ga naar kladblok

Product 952565 is toegevoegd aan de winkelmand

Ga naar webshop

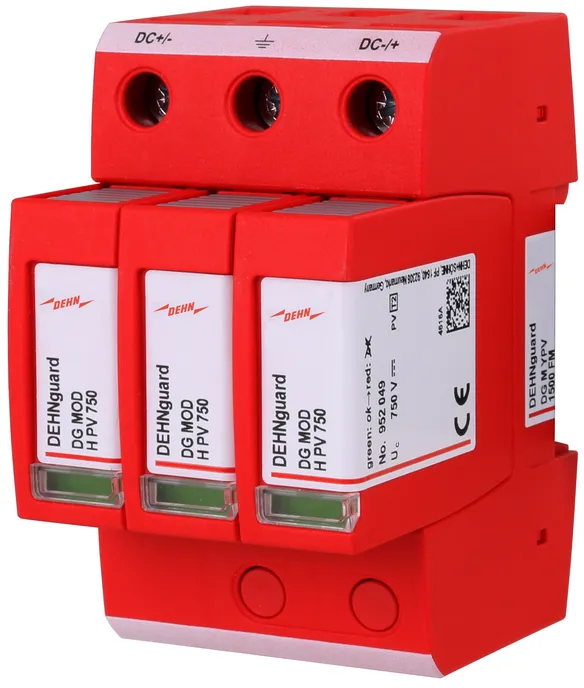

Artikelnr. 952567 DG M YPV 1500 FM

GTIN 4013364327726, CCT: 85363030, Brutogewicht: 353.50 g, VPE: 1.00 Stk

Afbeeldingen

Aanvullende informatie

CAD files

DEHNguard M YPV 1500 surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems
up to 1500 V d.c., width: 3 modules
Fault indication
With remote signalling contact
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Max. PV voltage: <= 1500 V d.c.
Total discharge current: 40 kA
Voltage protection level: <= 5 kV
Short-circuit current rating Iscpv: 10 kA

null: DG M YPV 1500 FM
null: 952567

Certificaten

Technische gegevens

SPD according to EN 50539-11	type 2
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 50539-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 50 kA (t ≤ 4 ms)
– Required backup fuse	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040

Product is toegevoegd aan kladblok

Ga naar kladblok

Product 952567 is toegevoegd aan de winkelmand

Ga naar webshop
