DEHNsecure modular

  • Coordinated spark-gap-based lightning current arrester consisting of a base part and a plug-in protection module
  • Spark gap technology particularly suited for use in d.c. circuits
  • High lightning current discharge capacity of 25 kA (10/350 µs)
  • Coordinated with DEHNguard SE DC ... surge protective devices
  • Low voltage protection level
  • Operating state / fault indication by green / red indicator flag in the inspection window
  • Easy replacement of protection modules due to module locking system with module release button

DEHNsecure M 1 ...

Coordinated and modular single-pole lightning current arrester for d.c. applications.

3 producten

Artikelnr. 971121 DSE M 1 60

GTIN 4013364138582, CCT: 85363090, Brutogewicht: 300.00 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

Coordinated DEHNsecure M 1 60 lightning current arrester
Modular, pluggable and coordinated single-pole lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series


null: DSE M 1 60
null: 971121

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 1.5 kV
Max. mains-side overcurrent protection 250 A gL
Approvals UL
Extended technical data: when used in safety lighting systems

Product is toegevoegd aan kladblok

Product 971121 is toegevoegd aan de winkelmand

Ga naar webshop

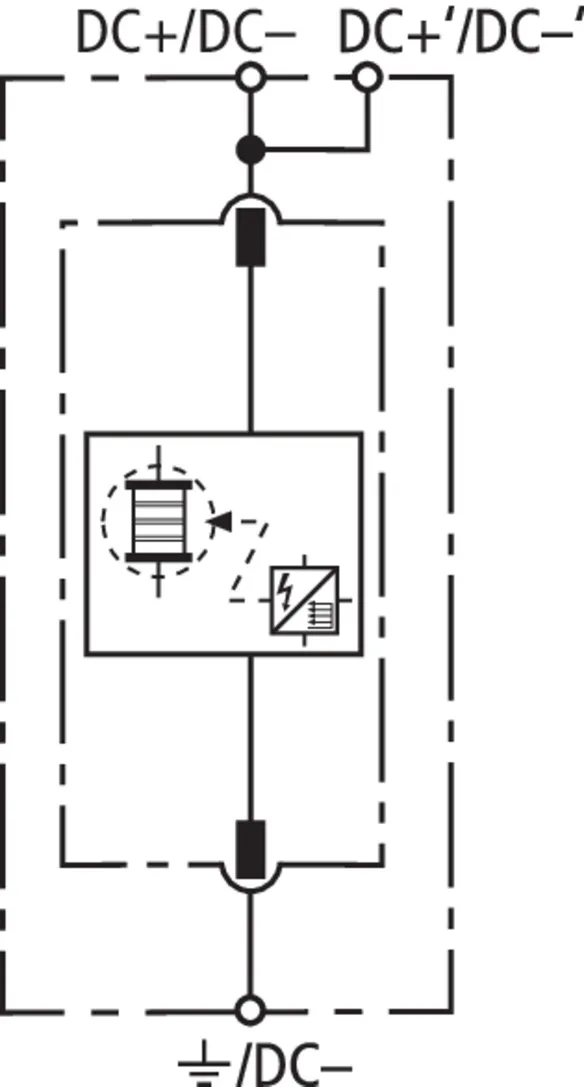

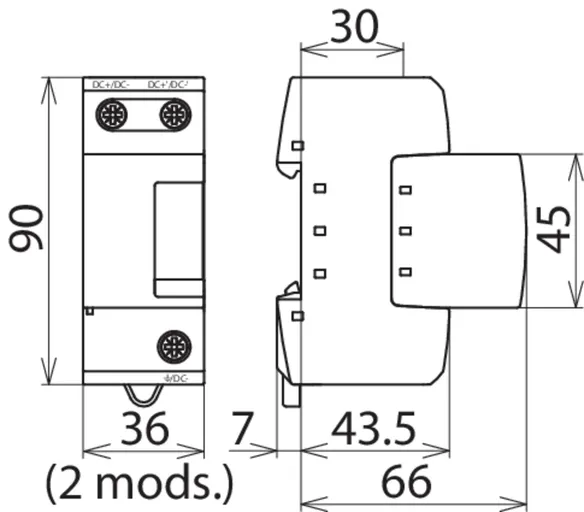

Artikelnr. 971120 DSE M 1 220

GTIN 4013364133631, CCT: 85363090, Brutogewicht: 268.20 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

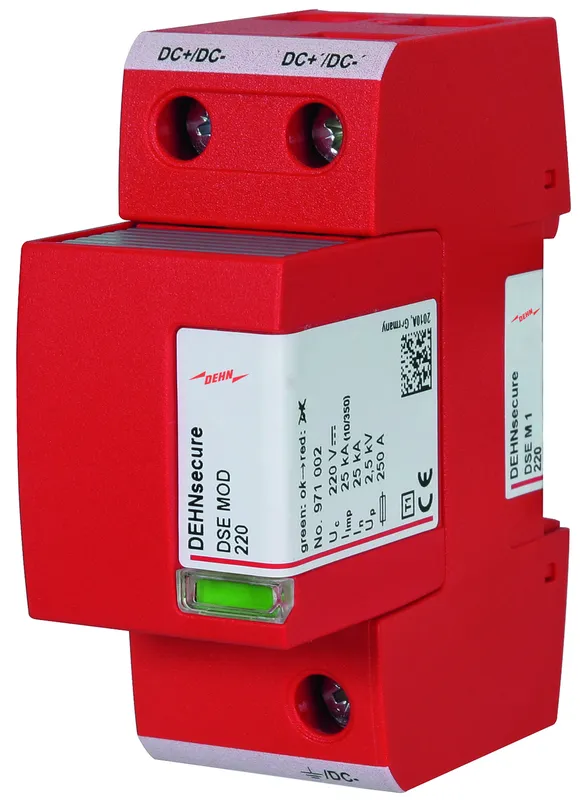

Coordinated DEHNsecure M 1 220 lightning current arrester
Modular, pluggable and coordinated single-pole lightning current arrester
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series


null: DSE M 1 220
null: 971120

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 220 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 2.5 kV
Max. mains-side overcurrent protection 250 A gL
Extended technical data: when used in safety lighting systems

Product is toegevoegd aan kladblok

Product 971120 is toegevoegd aan de winkelmand

Ga naar webshop

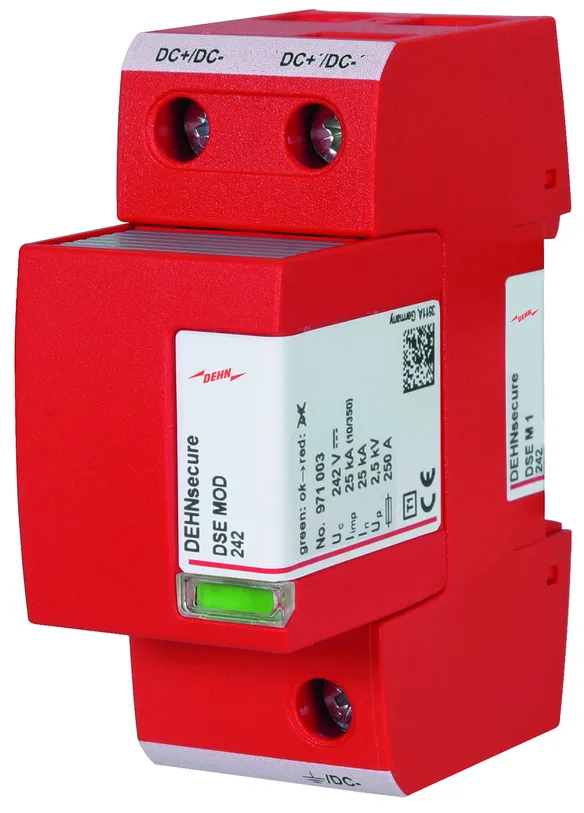

Artikelnr. 971122 DSE M 1 242

GTIN 4013364144477, CCT: 85363090, Brutogewicht: 273.70 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

Coordinated DEHNsecure M 1 242 lightning current arrester
Modular, pluggable and coordinated single-pole lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series


null: DSE M 1 242
null: 971122

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 242 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 2.5 kV
Max. mains-side overcurrent protection 250 A gL
Extended technical data: when used in safety lighting systems
– Max. continuous operating voltage (a.c.) (UC ) 255 V

Product is toegevoegd aan kladblok

Product 971122 is toegevoegd aan de winkelmand

Ga naar webshop

DEHNsecure M 1 ... FM

Coordinated and modular single-pole lightning current arrester for d.c. applications; with remote signalling contact for monitoring device (floating changeover contact).

3 producten

Artikelnr. 971126 DSE M 1 60 FM

GTIN 4013364138599, CCT: 85363090, Brutogewicht: 304.00 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

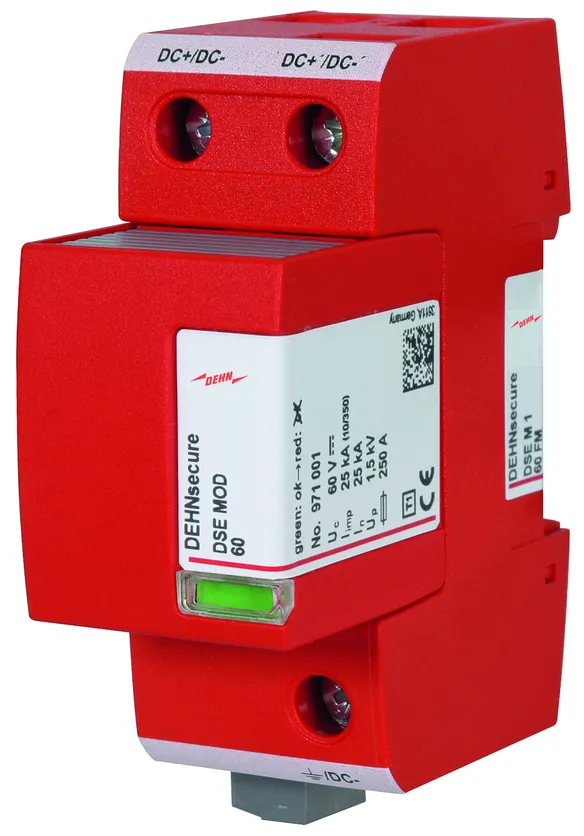

Coordinated DEHNsecure M 1 60 FM lightning current arrester
Modular, pluggable and coordinated single-pole lightning current arrester
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <=1.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series


null: DSE M 1 60 FM
null: 971126

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 1.5 kV
Max. mains-side overcurrent protection 250 A gL
Approvals UL
Type of remote signalling contact changeover contact
Extended technical data: when used in safety lighting systems

Product is toegevoegd aan kladblok

Product 971126 is toegevoegd aan de winkelmand

Ga naar webshop

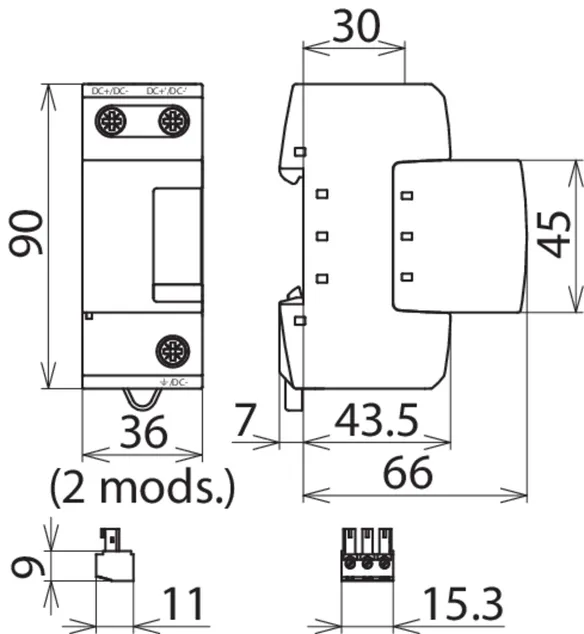

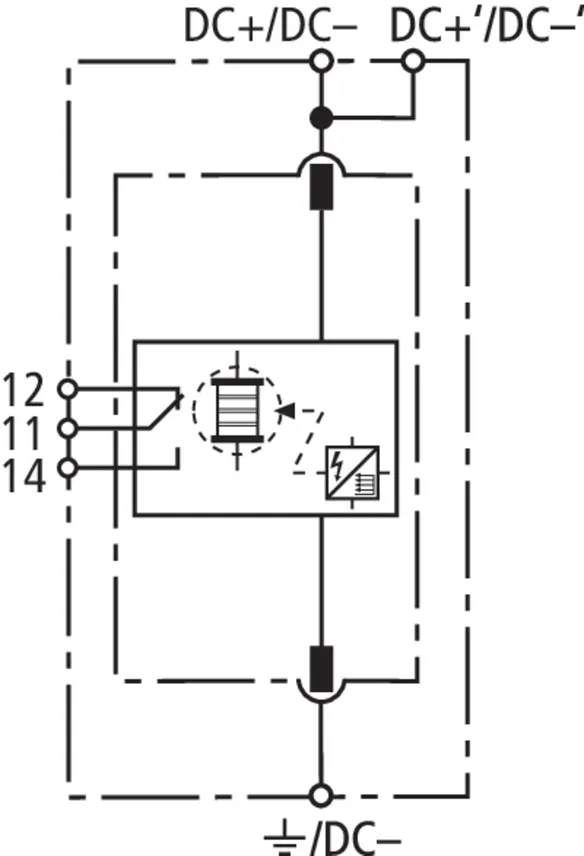

Artikelnr. 971125 DSE M 1 220 FM

GTIN 4013364133648, CCT: 85363090, Brutogewicht: 241.90 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

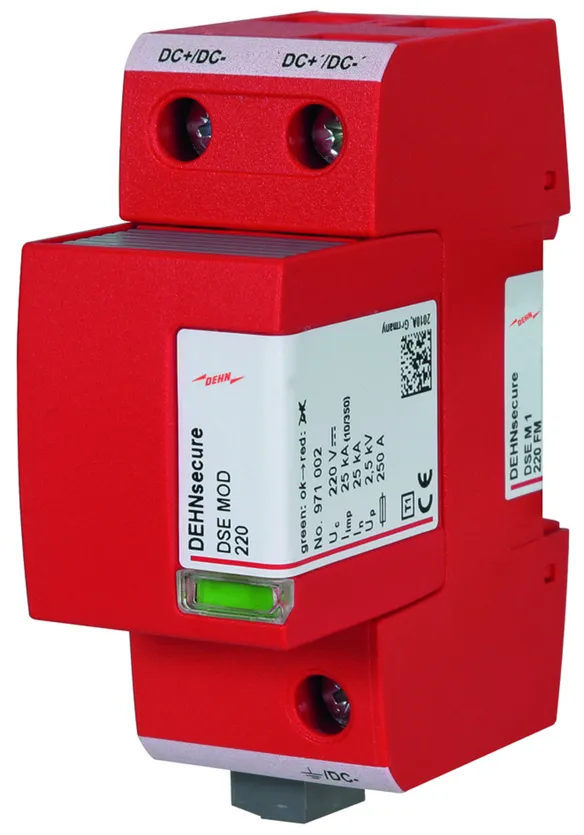

Coordinated DEHNsecure M 1 220 FM lightning current arrester
Modular, pluggable and coordinated single-pole lightning current arrester
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V a.c.
Voltage protection level: <=2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series


null: DSE M 1 220 FM
null: 971125

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 220 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 2.5 kV
Max. mains-side overcurrent protection 250 A gL
Type of remote signalling contact changeover contact
Extended technical data: when used in safety lighting systems

Product is toegevoegd aan kladblok

Product 971125 is toegevoegd aan de winkelmand

Ga naar webshop

Artikelnr. 971127 DSE M 1 242 FM

GTIN 4013364144484, CCT: 85363090, Brutogewicht: 269.50 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

Coordinated DEHNsecure M 1 242 FM lightning current arrester
Modular, pluggable and coordinated single-pole lightning current arrester, width: 2 mod.
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V a.c.
Voltage protection level: <=2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series


null: DSE M 1 242 FM
null: 971127

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 242 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA
Voltage protection level (UP ) ≤ 2.5 kV
Max. mains-side overcurrent protection 250 A gL
Type of remote signalling contact changeover contact
Extended technical data: when used in safety lighting systems
– Max. continuous operating voltage (a.c.) (UC ) 255 V

Product is toegevoegd aan kladblok

Product 971127 is toegevoegd aan de winkelmand

Ga naar webshop

DEHNsecure M 2P ... (FM)

Coordinated and modular two-pole lightning current arrester for d.c. applications up to 60 V (1+1 configuration); FM version with floating remote signalling contact.

2 producten

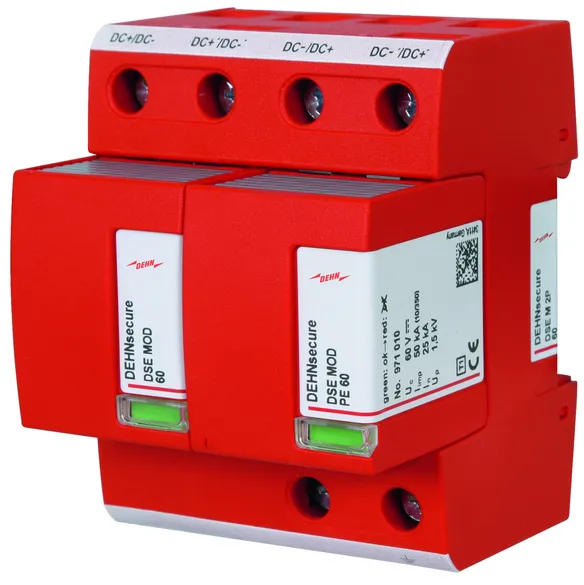

Artikelnr. 971221 DSE M 2P 60

GTIN 4013364138612, CCT: 85363090, Brutogewicht: 638.00 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

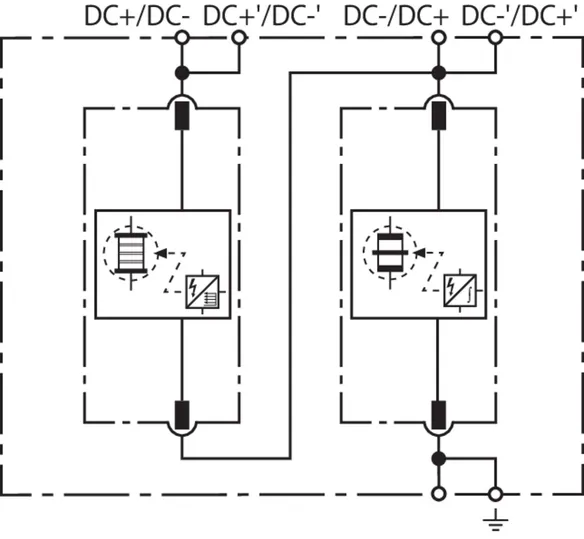

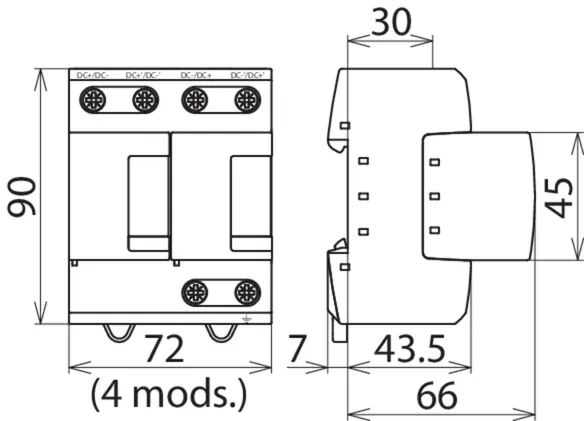

Coordinated DEHNsecure M 2P 60 lightning current arrester
Modular, pluggable and coordinated two-pole lightning current arrester, width: 4 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <=1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Short-circuit strength (d.c.) in case of max.
mains-side overcurrent protection (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series


null: DSE M 2P 60
null: 971221

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (Iimp ) 25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 250 A gL
Approvals UL

Product is toegevoegd aan kladblok

Product 971221 is toegevoegd aan de winkelmand

Ga naar webshop

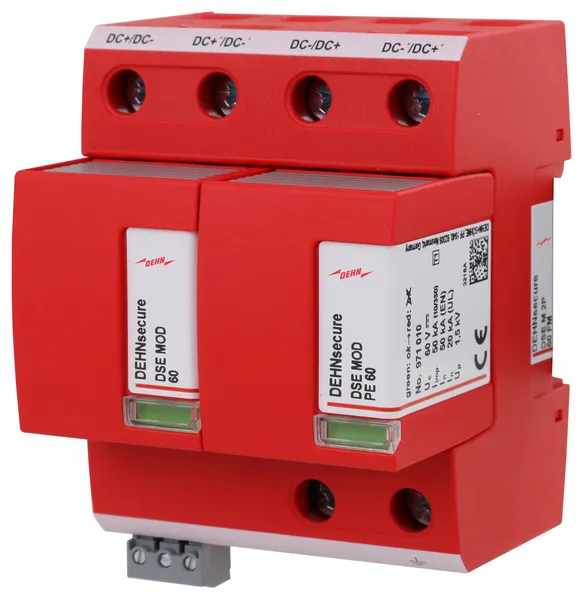

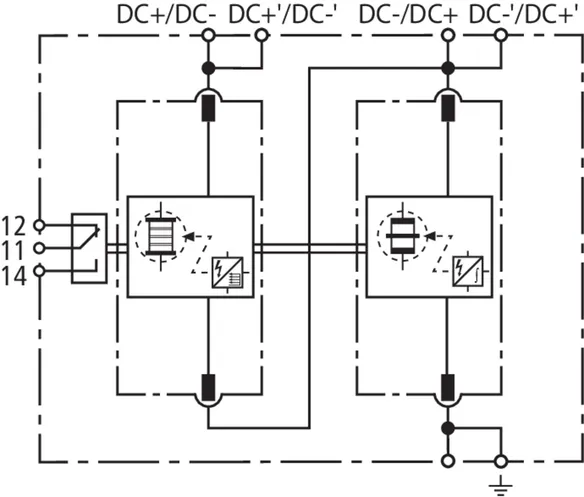

Artikelnr. 971226 DSE M 2P 60 FM

GTIN 4013364138629, CCT: 85363090, Brutogewicht: 675.00 g, VPE: 1.00 Stk


Afbeeldingen

Aanvullende informatie

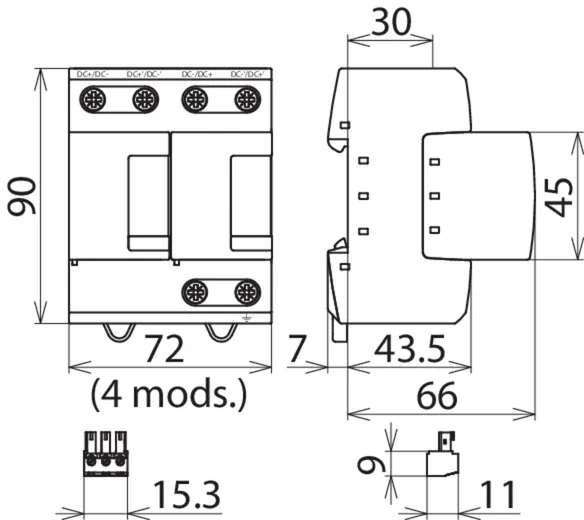

Coordinated DEHNsecure M 2P 60 FM lightning current arrester
Modular, pluggable and coordinated two-pole lightning current arresters, width: 4 mod.
for d.c. applications
with remote signalling contact
Type 1 SPD in accordance with EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series


null: DSE M 2P 60 FM
null: 971226

Certificaten



Technische gegevens

SPD classification according to EN 61643-11 / IEC 61643-11 type 1 / class I
Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (Iimp ) 25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 250 A gL
Approvals UL
Type of remote signalling contact changeover contact

Product is toegevoegd aan kladblok

Product 971226 is toegevoegd aan de winkelmand

Ga naar webshop
