Part No. 759706 PHV1P 6 12

GTIN 4013364259232, Customs tariff No.: 90303370, Gross weight: 1.60 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6 ... 12 kV

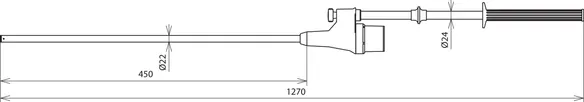

Total length (l_G )	1270 mm
Insertion depth (I_O )	450 mm

Nominal voltage (U_N )	6 ... 12 kV
Type of voltage	a.c.
Total length (l_G )	1270 mm
Insertion depth (I_O )	450 mm
Standard	EN/IEC 61481-1 (DIN VDE 0682-431-1)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Straight
For use at	_
For	Indoor and outdoor installations
Design	Single-pole
Indication	Visual
Self-testing element	Yes
Battery	Lithium AA 1.5 Volt
Material (test prod)	Plastic
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 759706 was added to Notepad.

Go to Notepad

Product 759706 was added to the cart.

Go to Web-Shop

Part No. 759712 PHV1P 10 20

GTIN 4013364259256, Customs tariff No.: 90303370, Gross weight: 2.41 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	10 ... 20 kV
Total length (l_G )	1270 mm
Insertion depth (I_O )	450 mm

Nominal voltage (U_N )	10 ... 20 kV
Type of voltage	a.c.
Total length (l_G )	1270 mm
Insertion depth (I_O )	450 mm
Standard	EN/IEC 61481-1 (DIN VDE 0682-431-1)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Straight
For use at	_
For	Indoor and outdoor installations
Design	Single-pole
Indication	Visual
Self-testing element	Yes
Battery	Lithium AA 1.5 Volt
Material (test prod)	Plastic
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 759712 was added to Notepad.

Go to Notepad

Product 759712 was added to the cart.

Go to Web-Shop

Part No. 759736 PHV1P 20 36

GTIN 4013364259263, Customs tariff No.: 90303370, Gross weight: 2.65 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	20 ... 36 kV
Total length (l_G )	1730 mm
Insertion depth (I_O )	910 mm

Nominal voltage (U_N )	20 ... 36 kV
Type of voltage	a.c.
Total length (l_G )	1730 mm
Insertion depth (I_O )	910 mm
Standard	EN/IEC 61481-1 (DIN VDE 0682-431-1)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Straight
For use at	_
For	Indoor and outdoor installations
Design	Single-pole
Indication	Visual
Self-testing element	Yes
Battery	Lithium AA 1.5 Volt
Material (test prod)	Plastic
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 759736 was added to Notepad.

Go to Notepad

Product 759736 was added to the cart.

Go to Web-Shop

Part No. 759716 PHV1P U 5 36

GTIN 4013364259270, Customs tariff No.: 90303370, Gross weight: 2.66 kg, PU: 1.00 Stk

Predecessor

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	5 ... 10 / 20 ... 36 kV
Total length (l_G )	1730 mm
Insertion depth (I_O )	910 mm

Nominal voltage (U_N )	5 ... 10 / 20 ... 36 kV
Type of voltage	a.c.
Total length (l_G )	1730 mm
Insertion depth (I_O )	910 mm
Standard	EN/IEC 61481-1 (DIN VDE 0682-431-1)
Temperature range	–25 °C ... +55 °C, climatic category N
Design	Straight
For use at	_
For	Indoor and outdoor installations
Design	Single-pole
Indication	Visual
Self-testing element	Yes
Battery	Lithium AA 1.5 Volt
Material (test prod)	Plastic
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Product 759716 was added to Notepad.

Go to Notepad

Product 759716 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

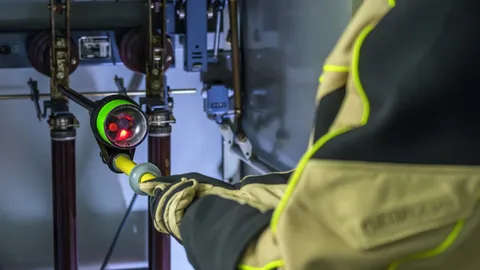

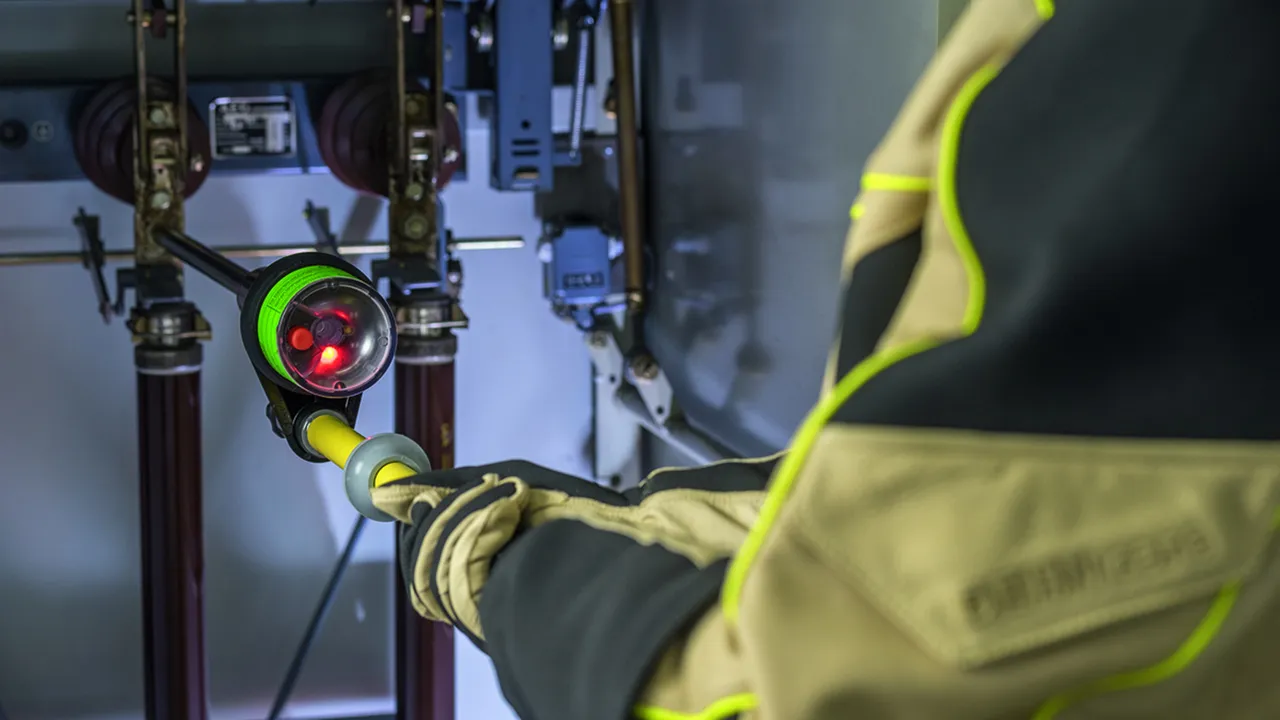

Single-pole PHV I Phase Comparator

Nominal Voltage Ranges up to 36 kV / 50 Hz

Part No. 759706 PHV1P 6 12

Product 759706 was added to Notepad.

Product 759706 was added to the cart.

Part No. 759712 PHV1P 10 20

Product 759712 was added to Notepad.

Product 759712 was added to the cart.

Part No. 759736 PHV1P 20 36

Product 759736 was added to Notepad.

Product 759736 was added to the cart.

Nominal Voltage Ranges up to 36 kV / 50 Hz, switchable

Part No. 759716 PHV1P U 5 36
