Bridging Cables

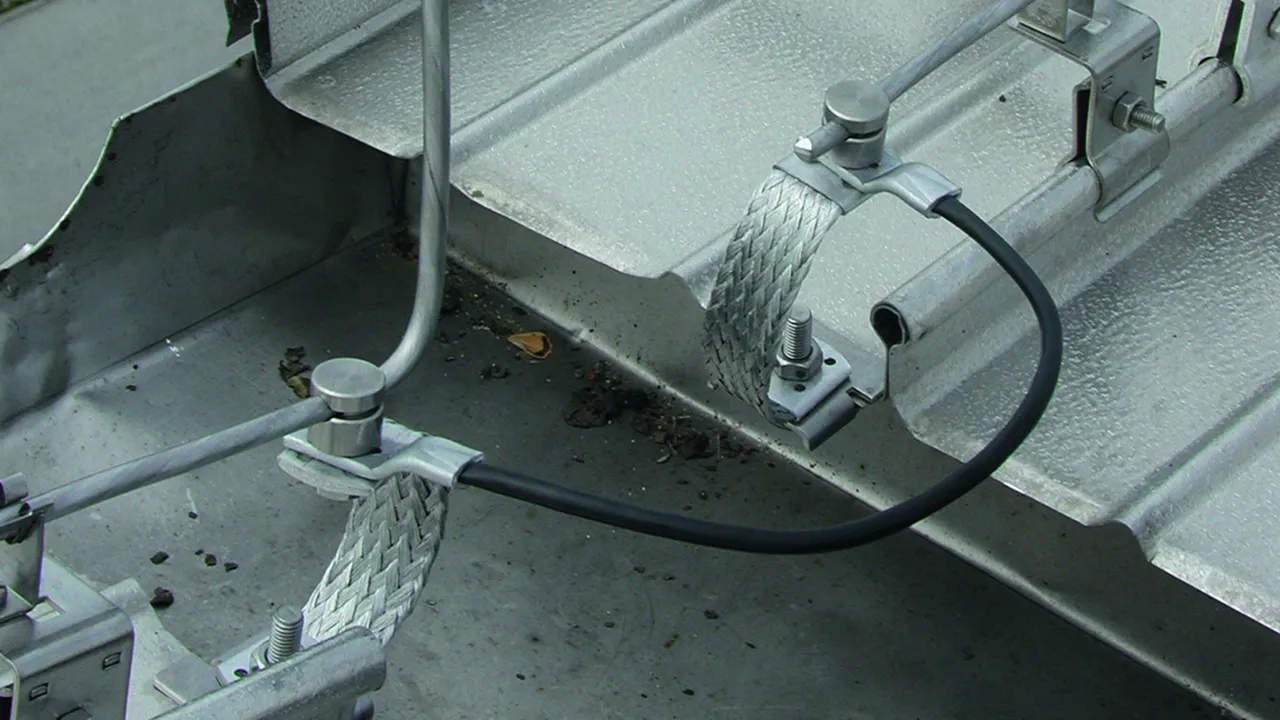

Suitable for connecting / bridging metal claddings using screws, or as compensation for certain temperature-related changes in length for round wires; connection e.g. with KS connector part no. 301 019.

Application note:
According to DIN EN 62305-3 Suppl. 1, two rivets Ø6 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt self-tapping screws Ø6.3 mm (on both sides) for material of ≥ 2 mm thickness.

10 Products

Part No. 377216 UEBS 16 L... B10.5 CU SW ID

GTIN 4013364494565, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 Stk

Images

Additional information


Length: 200 - 1500 mm *) mm
Material of cable lug: Cu/gal (Ni)Sn

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW ID
Part No.: 377216
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product 377216 was added to Notepad.

Go to Notepad

Product 377216 was added to the cart.

Go to Web-Shop

Part No. 377217 UEBS 16 L... B10.5 CU GNGE ID

GTIN 4013364494572, Customs tariff No. (EU): 85359000, Gross weight: 411.90 g, PU: 1.00 Stk

Images

Additional information


Length: 200 - 1500 mm *) mm
Material of cable lug: Cu/gal (Ni)Sn

Brand: DEHN
Type: UEBS 16 L... B10.5 CU GNGE ID
Part No.: 377217
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product 377217 was added to Notepad.

Go to Notepad

Product 377217 was added to the cart.

Go to Web-Shop

Part No. 377225 UEBS 25 L... B10.5 CU SW ID

GTIN 4013364494589, Customs tariff No. (EU): 85359000, Gross weight: 558.80 g, PU: 1.00 Stk

Images

Additional information


Length: 200 - 1500 mm *) mm
Material of cable lug: Cu/gal (Ni)Sn

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW ID
Part No.: 377225
or equivalent.

Certificates



Technical data

Length (l1) 200 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product 377225 was added to Notepad.

Go to Notepad

Product 377225 was added to the cart.

Go to Web-Shop

Part No.

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Length (l1) 200 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product was added to Notepad.

Go to Notepad

Product was added to the cart.

Go to Web-Shop

Part No.

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Length (l1) 200 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product was added to Notepad.

Go to Notepad

Product was added to the cart.

Go to Web-Shop

Part No.

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Length (l1) 200 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product was added to Notepad.

Go to Notepad

Product was added to the cart.

Go to Web-Shop

Part No.

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Length (l1) 350 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product was added to Notepad.

Go to Notepad

Product was added to the cart.

Go to Web-Shop

Part No.

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Length (l1) 350 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product was added to Notepad.

Go to Notepad

Product was added to the cart.

Go to Web-Shop

Part No.

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Length (l1) 350 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product was added to Notepad.

Go to Notepad

Product was added to the cart.

Go to Web-Shop

Part No.

GTIN , Customs tariff No. (EU): , Gross weight: , PU:

Images

Additional information



Technical data

Length (l1) 350 - 1500 mm *) mm
Material of cable lug Cu/gal (Ni)Sn

Product was added to Notepad.

Go to Notepad

Product was added to the cart.

Go to Web-Shop

4 Products

Part No. 377210 UEBS 16 L200 B10.5 B6.5 AL CU

GTIN 4013364083028, Customs tariff No. (EU): 85359000, Gross weight: 53.01 g, PU: 10.00 Stk

Predecessor

Images

Additional information

Bridging cable, 200 mm long
Bridging cable
For connecting (screwing) or bridging metal cladding
Fixing holes 1x Ø10.5 mm und 2x Ø6.5 mm
Length: 200 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L200 B10.5 B6.5 AL CU
Part No.: 377210
or equivalent.

Certificates



Technical data

Length (l1) 200 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note according to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377210 was added to Notepad.

Go to Notepad

Product 377210 was added to the cart.

Go to Web-Shop

Part No. 377310 UEBS 16 L300 B10.5 B6.5 AL CU

GTIN 4013364033382, Customs tariff No. (EU): 85359000, Gross weight: 88.50 g, PU: 100.00 Stk

Predecessor

Images

Additional information

Bridging cable, 300 mm long
Bridging cable
For connecting (screwing) or bridging metal cladding
Fixing holes 1xØ10.,5 mm und 2xØ6.5 mm
Length: 300 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L300 B10.5 B6.5 AL CU
Part No.: 377310
or equivalent.

Certificates



Technical data

Length (l1) 300 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note according to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377310 was added to Notepad.

Go to Notepad

Product 377310 was added to the cart.

Go to Web-Shop

Part No. 377410 UEBS 16 L400 B10.5 B6.5 AL CU

GTIN 4013364083035, Customs tariff No. (EU): 85359000, Gross weight: 90.40 g, PU: 10.00 Stk

Predecessor

Images

Additional information

Bridging cable, 400 mm long
Bridging cable
For connecting (screwing) or bridging metal cladding
Fixing holes 1x Ø10.5 mm und 2x Ø6.5 mm
Length: 400 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L400 B10.5 B6.5 AL CU
Part No.: 377410
or equivalent.

Certificates



Technical data

Length (l1) 400 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note according to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377410 was added to Notepad.

Go to Notepad

Product 377410 was added to the cart.

Go to Web-Shop

Part No. 377510 UEBS 16 L500 B10.5 B6.5 AL CU

GTIN 4013364033399, Customs tariff No. (EU): 85359000, Gross weight: 110.00 g, PU: 10.00 Stk

Predecessor

Images

Additional information

Bridging cable, 500 mm long
Bridging cable
For connecting (screwing) or bridging metal cladding
Fixing holes 1x Ø10.5 mm und 2x Ø6.5 mm
Length: 500 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L500 B10.5 B6.5 AL CU
Part No.: 377510
or equivalent.

Certificates



Technical data

Length (l1) 500 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note according to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 377510 was added to Notepad.

Go to Notepad

Product 377510 was added to the cart.

Go to Web-Shop
