Disconnecting Sleeves

For connecting down conductors with earth entry rods.

Open design for earth entry rods

2 Products

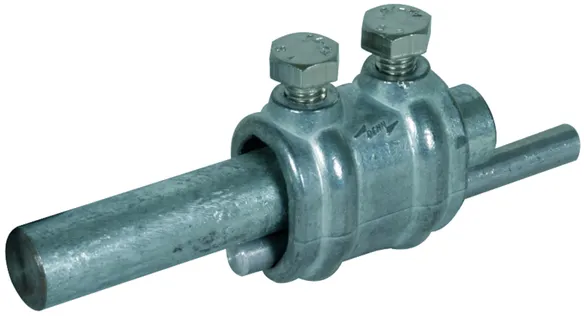

Part No. 450000 TM 7.10 16 ZG

GTIN 4013364025158, Customs tariff No. (EU): 85389099, Gross weight: 124.00 g, PU: 50.00 Stk

Images

Additional information

Disconnecting sleeves, open, for earth entry rods, ZDC
Disconnecting sleeve for connecting down conductors with
earth entries
Material: ZDC
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 7.10 16 ZG
Part No.: 450000
or equivalent.

Certificates



Technical data

Material ZDC
Clamping range Rd / Rd 7-10 / 16 mm
Standard EN 62561-1

Product 450000 was added to Notepad.

Go to Notepad

Product 450000 was added to the cart.

Go to Web-Shop

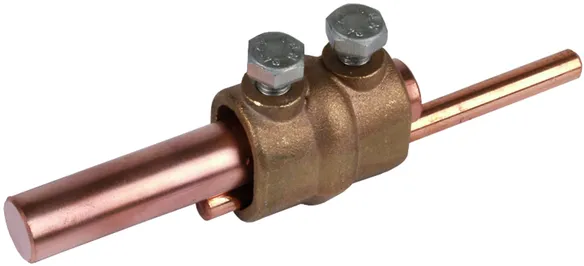

Part No. 450007 TM 7.10 16 RG

GTIN 4013364025165, Customs tariff No. (EU): 85389099, Gross weight: 135.40 g, PU: 1.00 Stk

Images

Additional information

Disconnecting sleeves, open, for earth entry rods, ZDC
Disconnecting sleeve for connecting down conductors with
earth entries
Material: Gunmetal
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 7.10 16 RG
Part No.: 450007
or equivalent.

Certificates



Technical data

Material Gunmetal
Clamping range Rd / Rd 7-10 / 16 mm
Standard EN 62561-1

Product 450007 was added to Notepad.

Go to Notepad

Product 450007 was added to the cart.

Go to Web-Shop

Open design for earth entry rods

1 Product

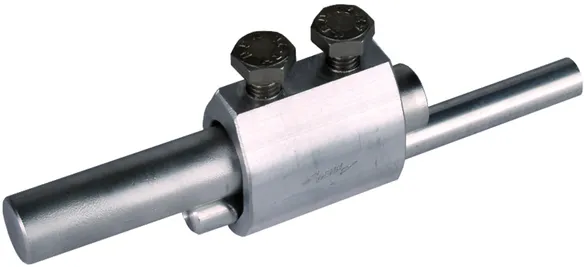

Part No. 450001 TM 7.10 16 AL

GTIN 4013364090903, Customs tariff No. (EU): 85389099, Gross weight: 64.50 g, PU: 50.00 Stk

Images

Additional information

Disconnecting sleeves, open, for earth entry rods, Al
Disconnecting sleeve for connecting down conductors
with earth entries
Material: Al
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 7.10 16 AL
Part No.: 450001
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd / Rd 8-10 / 16 mm
Standard EN 62561-1

Product 450001 was added to Notepad.

Go to Notepad

Product 450001 was added to the cart.

Go to Web-Shop

Closed design for earth entry rods

1 Product

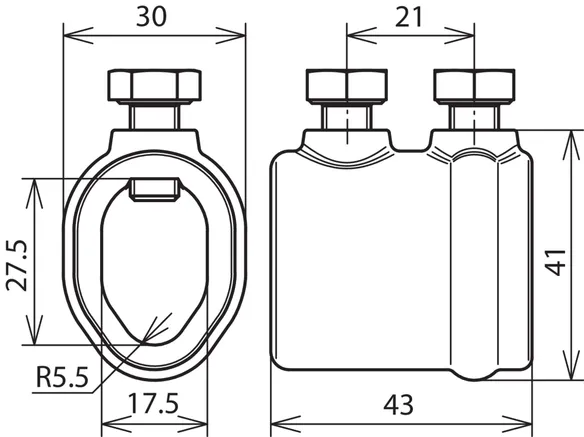

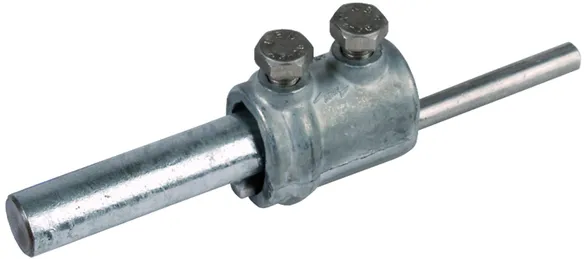

Part No. 450011 TM G 7.10 16 ZG

GTIN 4013364025172, Customs tariff No. (EU): 85389099, Gross weight: 136.50 g, PU: 50.00 Stk

Images

Additional information

Disconnecting sleeves, closed, for earth entry rods, ZDC
Disconnecting sleeve for connecting down conductors
with earth entries
Material: ZDC
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM G 7.10 16 ZG
Part No.: 450011
or equivalent.

Certificates



Technical data

Material ZDC
Clamping range Rd / Rd 7-10 / 16 mm
Standard EN 62561-1

Product 450011 was added to Notepad.

Go to Notepad

Product 450011 was added to the cart.

Go to Web-Shop

Open design for wires

1 Product

Part No. 450101 TM 8.10 8 AL

GTIN 4013364094093, Customs tariff No. (EU): 85389099, Gross weight: 45.10 g, PU: 50.00 Stk

Images

Additional information

Disconnecting sleeves, open, for wires, Al
Disconnecting sleeve for connecting down conductors
with earth entries
Material: Al
Clamping range Rd / Rd: 8-10 / 8 mm
Standard: EN 62561-1

Brand: DEHN
Type: TM 8.10 8 AL
Part No.: 450101
or equivalent.

Certificates



Technical data

Material Al
Clamping range Rd / Rd 8-10 / 8 mm
Standard EN 62561-1

Product 450101 was added to Notepad.

Go to Notepad

Product 450101 was added to the cart.

Go to Web-Shop
