Hammer Inserts for Tubular Earth Rods

For driving in tubular earth rods with a vibration hammer.

Details

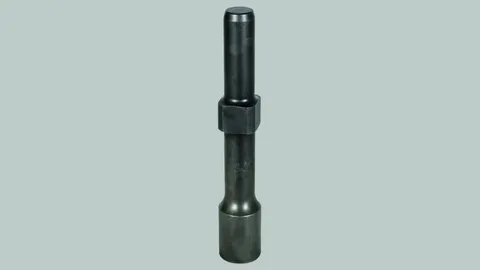

Hammer inserts for earth rods and tubular earth electrodes
lorem ipsum

Design Wacker Neuson

1 Product

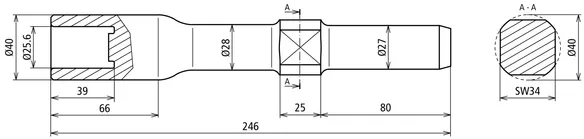

Part No. 648005 HE RE 25 R27 VH WN STBLANK

GTIN 4013364129160, Customs tariff No. (EU): 82079099, Gross weight: 1.46 kg, PU: 1.00 Stk

Images

Additional information

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving down earth rods with a vibration hammer
Type: EH 22/400, EH 23/230, EH 24/042/200, BH 23 and BHF 30
Adapter: round Ø27 x 80 mm
Material: St/bare

Brand: DEHN
Type: HE RE 25 R27 VH WN STBLANK
Part No.: 648005
or equivalent.



Technical data

Type EH 22/400, EH 23/230, EH 24/042/200, BH 23 and BHF 30
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 246 mm
Earth rod diameter 25 mm
Earth rod type RE

Product 648005 was added to Notepad.

Go to Notepad

Product 648005 was added to the cart.

Go to Web-Shop

Design Atlas Copco

1 Product

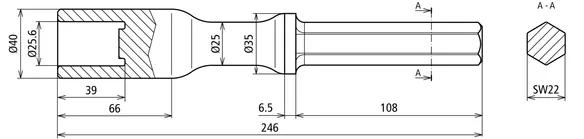

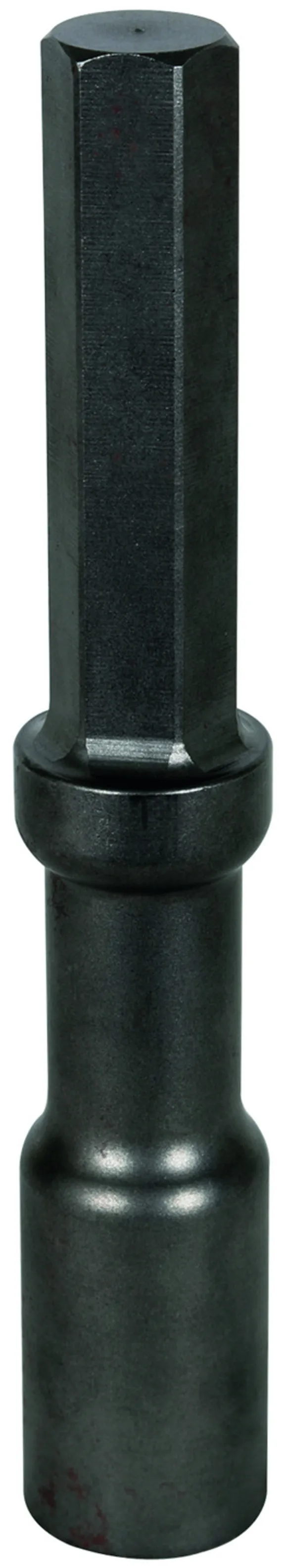

Part No. 648007 HE RE 25 SW22 VH AC STBLANK

GTIN 4013364129177, Customs tariff No. (EU): 82079099, Gross weight: 1.46 kg, PU: 1.00 Stk

Images

Additional information

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving down earth rods with a vibration hammer
Type: Cobra 149+248 and Pionjär 120+130
Adapter: hexagon, wrench size 22 x 108 mm
Material: St/bare

Brand: DEHN
Type: HE RE 25 SW22 VH AC STBLANK
Part No.: 648007
or equivalent.



Technical data

Type Cobra 149+248 and Pionjär 120+130
Adapter hexagon, wrench size 22 x 108 mm
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 246 mm
Earth rod diameter 25 mm
Earth rod type RE

Product 648007 was added to Notepad.

Go to Notepad

Product 648007 was added to the cart.

Go to Web-Shop

Design SDS-max

1 Product

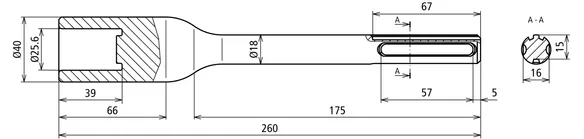

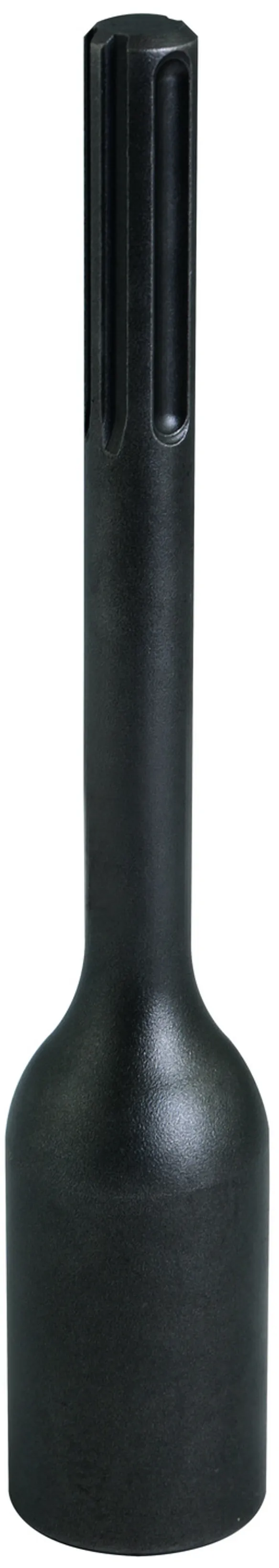

Part No. 648009 HE RE 25 SDS MAX VH STBLANK

GTIN 4013364315501, Customs tariff No. (EU): 82079099, Gross weight: 973.00 g, PU: 1.00 Stk

Images

Additional information

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving down earth rods with a vibration hammer
Type: vibration / impact hammer with SDS-max adapter
Adapter: round Ø18 x 175 mm
Material: St/bare

Brand: DEHN
Type: HE RE 25 SDS MAX VH STBLANK
Part No.: 648009
or equivalent.



Technical data

Type vibration / impact hammer with SDS-max adapter
Adapter round Ø18 x 175 mm
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 260 mm
Earth rod diameter 25 mm
Earth rod type RE
Note: It is recommended to use a hammer with a minimum striking force of 26 joules. The maximum drive-in depth depends on the soil conditions.

Product 648009 was added to Notepad.

Go to Notepad

Product 648009 was added to the cart.

Go to Web-Shop

Design Bosch / Hilti / Milwaukee

1 Product

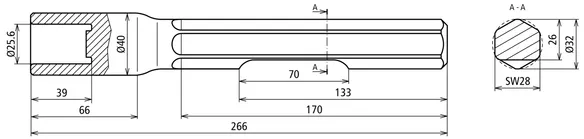

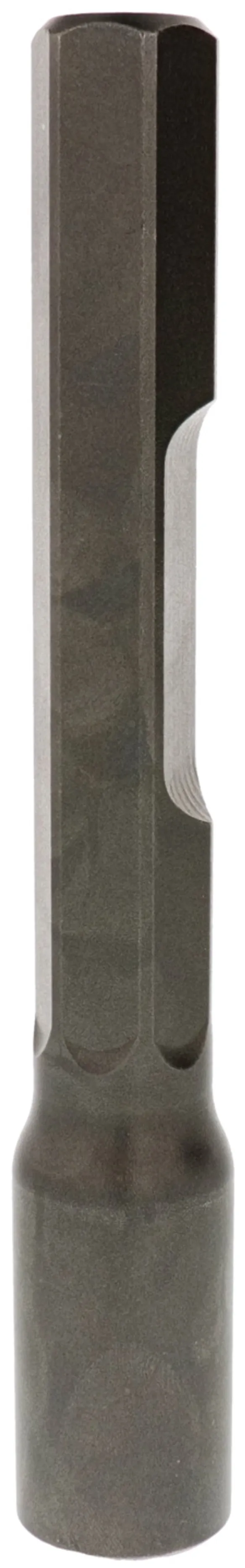

Part No. 648029 HE RE 25 SW28 VH BO STBLANK

GTIN 4013364236059, Customs tariff No. (EU): 82079099, Gross weight: 1.60 kg, PU: 1.00 Stk

Images

Additional information

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving earth rods into the ground with a vibration hammer
Type: GSH 27, GSH 27 VC, TE 3000 AVR
Adapter: hexagon SW28
Material: St/bare

Brand: DEHN
Type: HE RE 25 SW28 VH BO STBLANK
Part No.: 648029
or equivalent.



Technical data

Type GSH 27, GSH 27 VC, TE 3000 AVR
Adapter hexagon SW28
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 266 mm
Earth rod diameter 25 mm
Earth rod type RE

Product 648029 was added to Notepad.

Go to Notepad

Product 648029 was added to the cart.

Go to Web-Shop

Design Hilti TE-S

1 Product

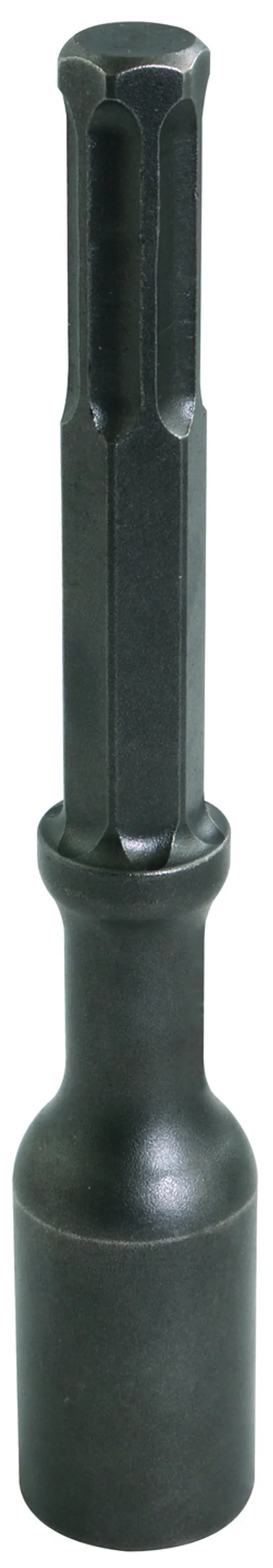

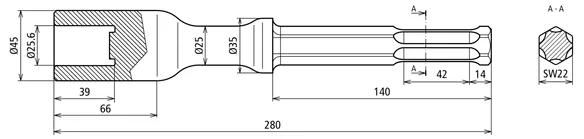

Part No. 648031 HE RE 25 TES VH HI STBLANK

GTIN 4013364293182, Customs tariff No. (EU): 82079099, Gross weight: 1.51 kg, PU: 1.00 Stk

Images

Additional information

Hammer inserts for tubular earth electrodes
Hammer inserts for for tubular earth electrodes for
driving earth rods into the ground with a vibration hammer
Type: vibration / impact hammer with TE-S adapter
Adapter: Hilti TE-S
Material: St/bare

Brand: DEHN
Type: HE RE 25 TES VH HI STBLANK
Part No.: 648031
or equivalent.



Technical data

Type vibration / impact hammer with TE-S adapter
Adapter Hilti TE-S
Material St/bare
Hole (d1 x l1) 25,6 x 39 mm
Length 280 mm
Earth rod diameter 25 mm
Earth rod type RE
