HSA 194 High-Voltage Indicator

Easy and safe testing
  • For contactlessly verifying that switchgear and high-voltage overhead lines or centre-earthed monophase traction power lines are dead
  • Cost-effective / space-saving transport

Details

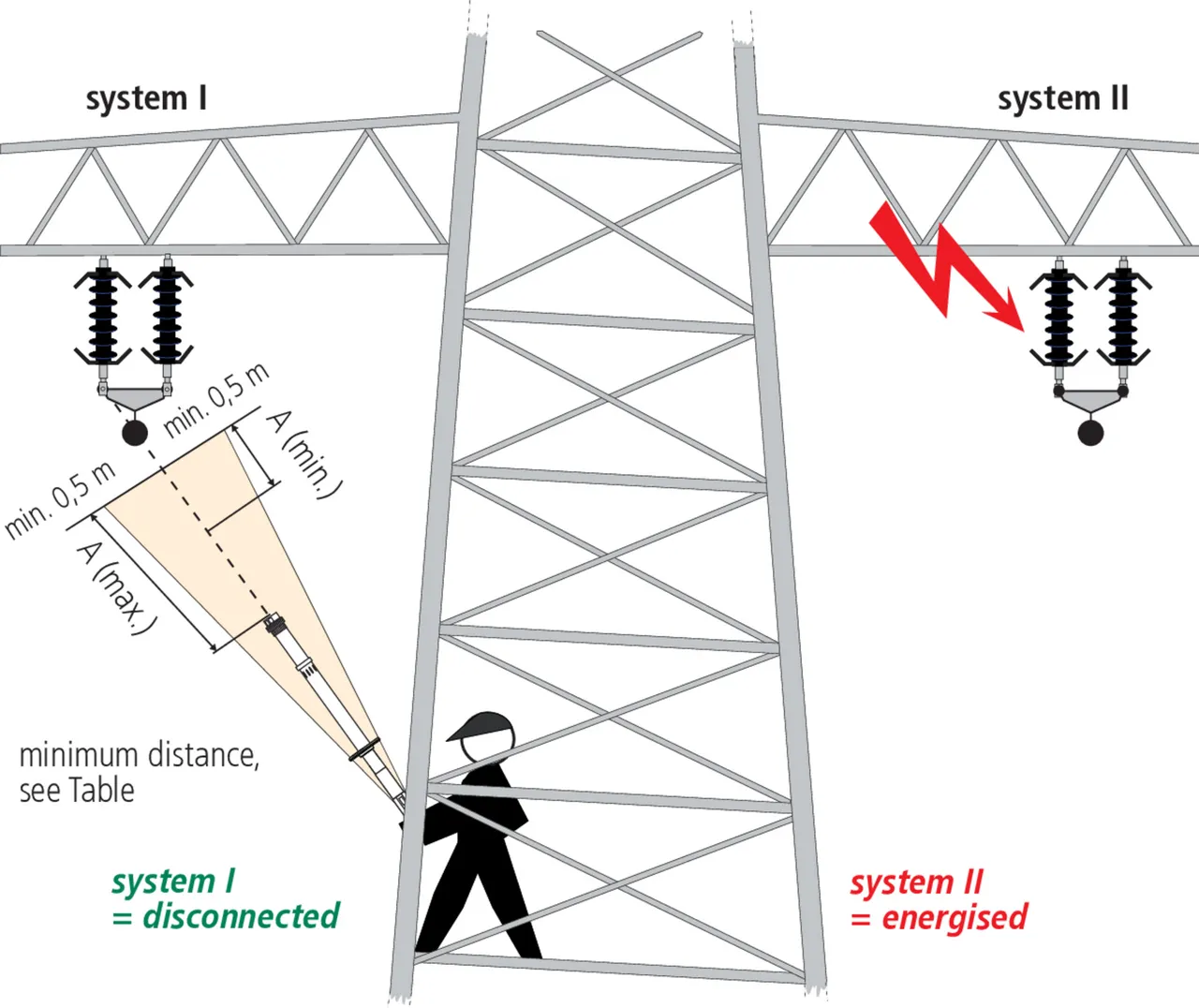

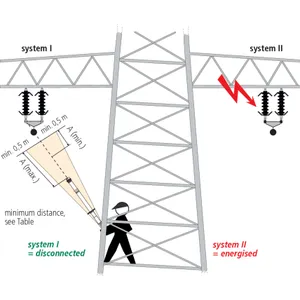

Figure 1: Example of application on the corner leg of a lattice tower with switch position "climbing check“ (only HSA 194 110 420 SN7737)
lorem ipsum

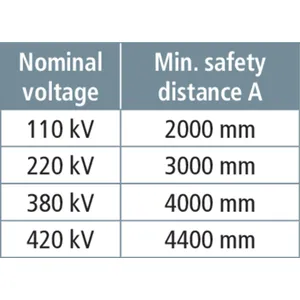

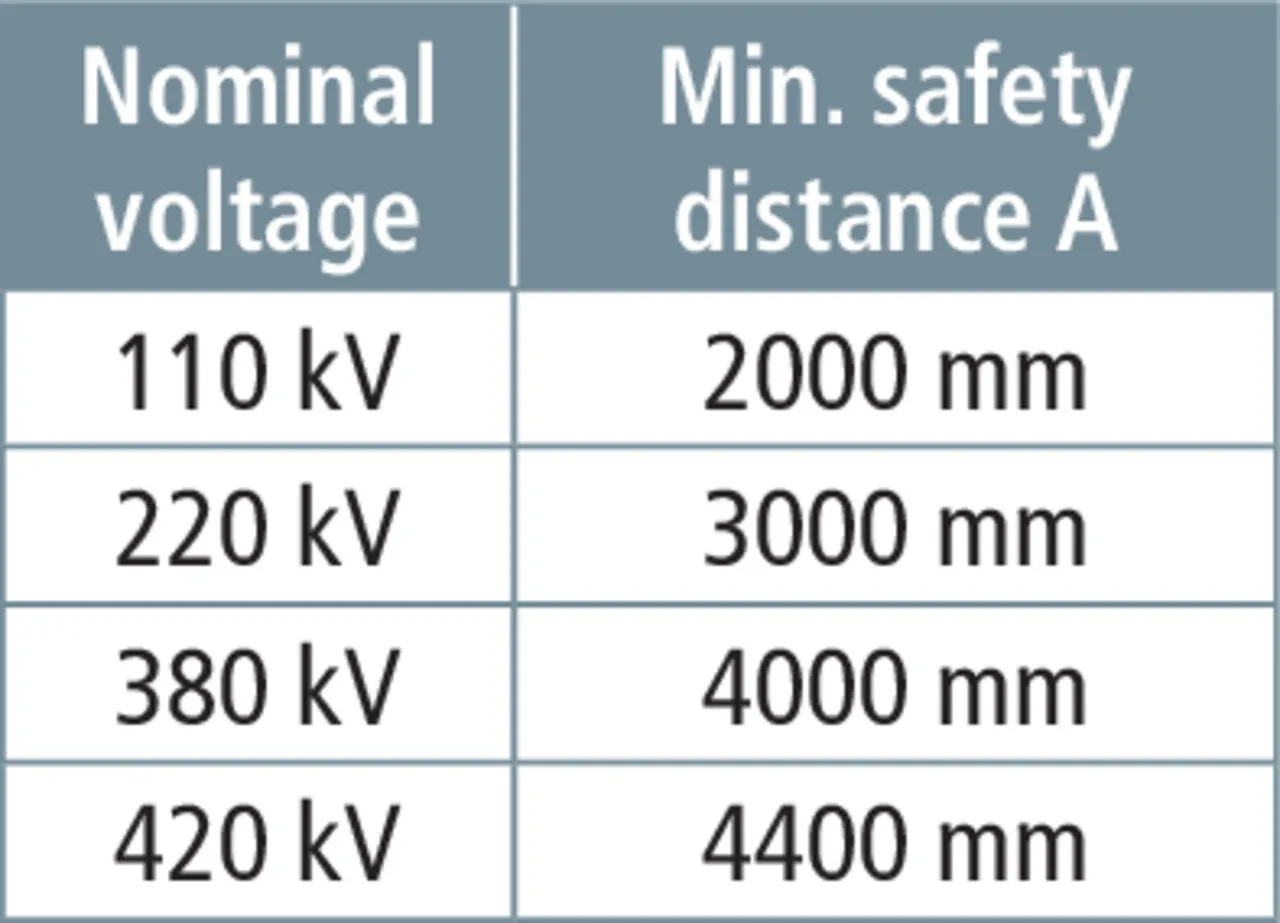

Table
lorem ipsum

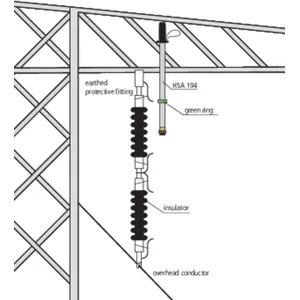

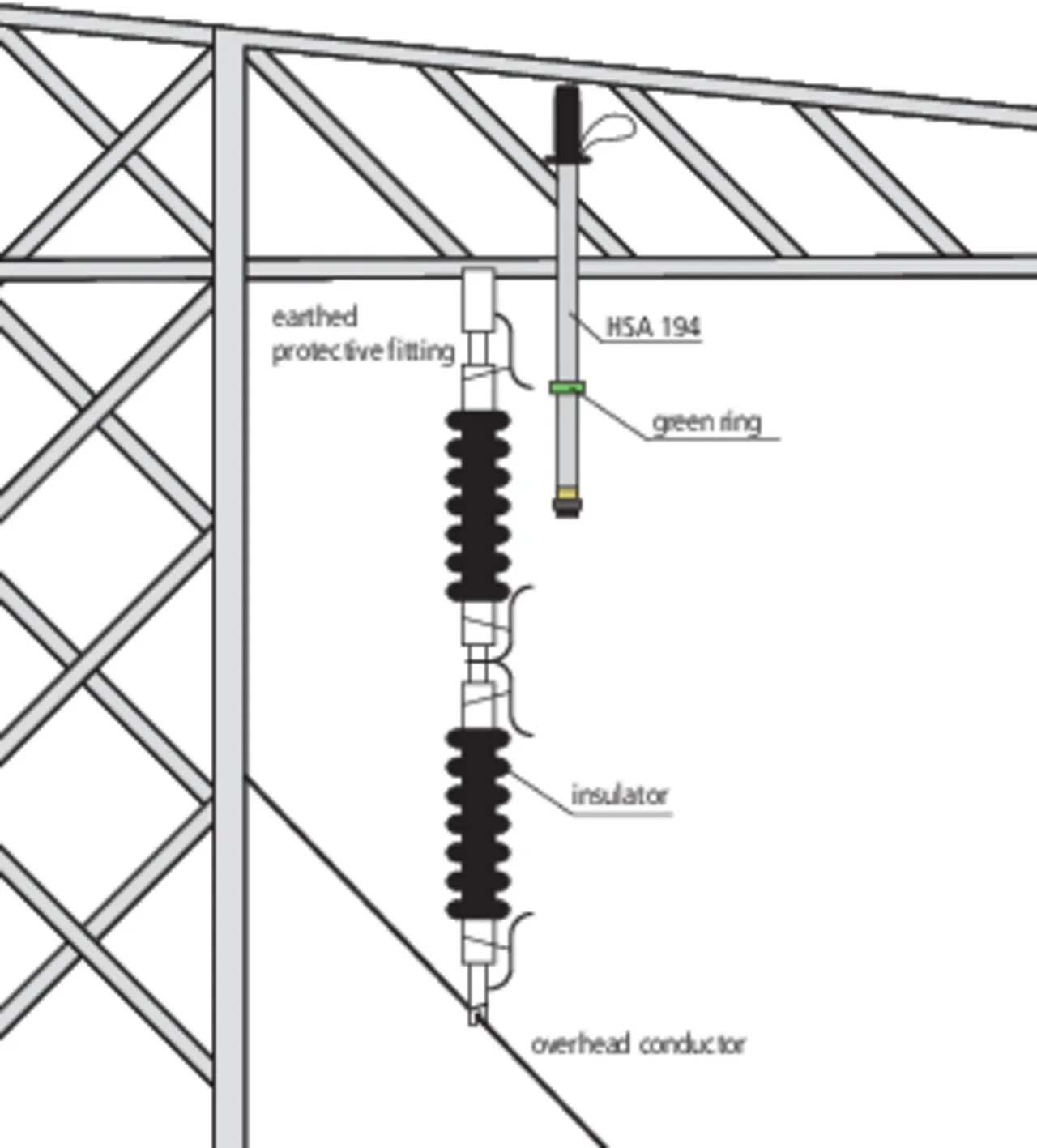

Figure 2: Example of application on the tower cross arm with switch position "110 ... 420 kV“
lorem ipsum

Nominal Voltage Range 110 ... 420 kV

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

2 producten

Artikelnr. 767541 HSA194 110 420 STK

GTIN 4013364115712, CCT: 90303370, Brutogewicht: 1.70 kg, VPE: 1.00 Stk


Afbeeldingen

Certificaten



Technische gegevens

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 50 Hz

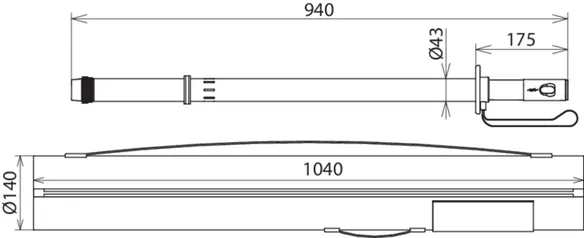

Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
Verification while climbing the tower No

Product is toegevoegd aan kladblok

Product 767541 is toegevoegd aan de winkelmand

Ga naar webshop

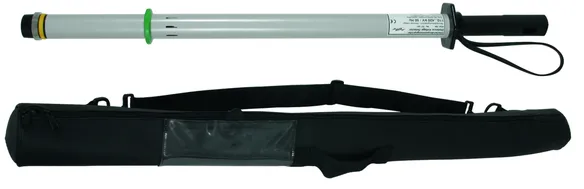

Artikelnr. 767542 HSA194 110 420 16.7

GTIN 4013364086616, CCT: 90303370, Brutogewicht: 5.85 kg, VPE: 1.00 Stk

Voorganger

Afbeeldingen

Certificaten



Technische gegevens

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 16.7 Hz
Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
DB drawing No. 3 Ekgw 02.54
Verification while climbing the tower No

Product is toegevoegd aan kladblok

Product 767542 is toegevoegd aan de winkelmand

Ga naar webshop

Nominal Voltage Range 110 ... 420 kV, with verification while climbing the tower

With plug-in coupling as end fitting for extending the handle.
Storage bag included in delivery.

1 Product

Artikelnr. 767539 HSA 194 110 420 SN7737

GTIN 4013364306769, CCT: 90303370, Brutogewicht: 1.82 kg, VPE: 1.00 Stk


Afbeeldingen



Technische gegevens

Nominal voltage range (UN ) 110 ... 420 kV
Frequency 50 Hz
Total length (lG ) 940 mm
Insulating clearance (lI ) 540 mm
Verification while climbing the tower Yes

Product is toegevoegd aan kladblok

Product 767539 is toegevoegd aan de winkelmand

Ga naar webshop
