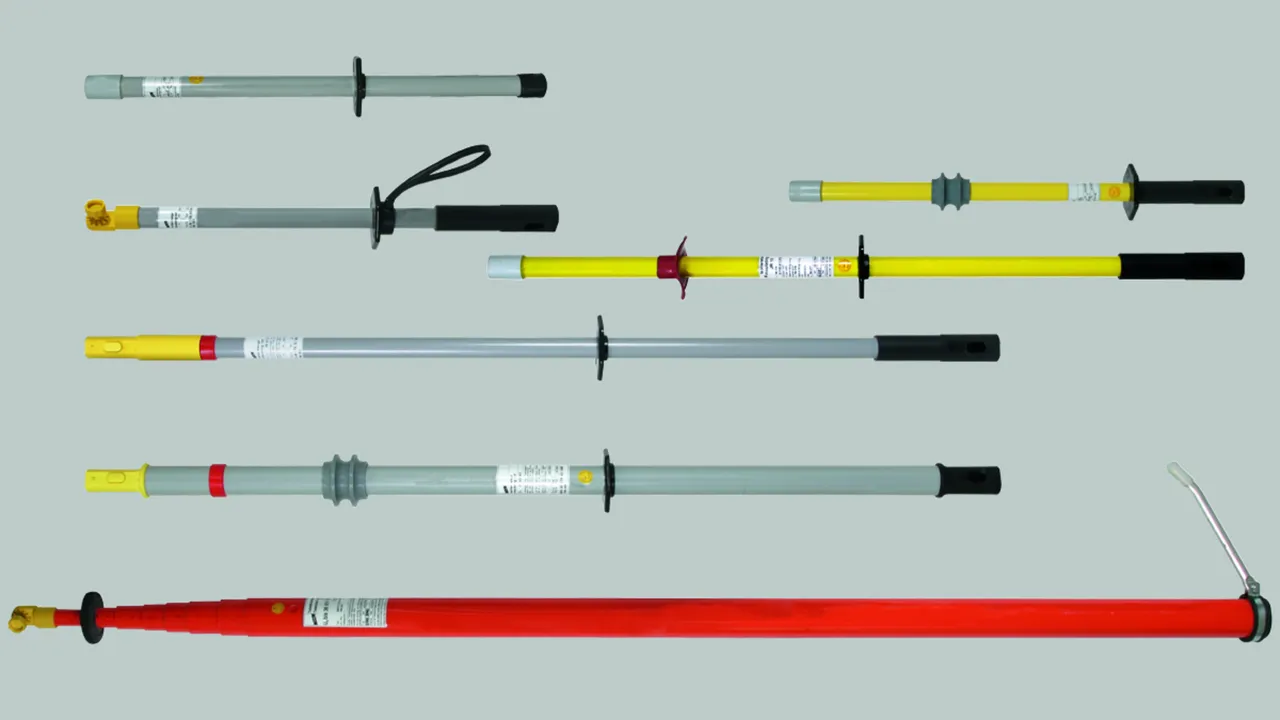

Insulating Sticks

For PHE4, with M12 threaded Bushing

3 Products

Part No. 783906 IS PHE4 STK 1110

GTIN 4013364292482, Customs tariff No. (EU): 82055980, Gross weight: 752.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 1110 mm
Length (handle) (lH ) 520 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 783906 was added to Notepad.

Product 783906 was added to the cart.

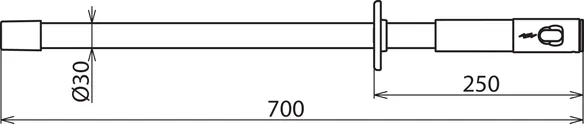

Part No. 783900 IS PHE4 STK 700

GTIN 4013364292505, Customs tariff No. (EU): 82055980, Gross weight: 493.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 700 mm
Length (handle) (lH ) 250 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 783900 was added to Notepad.

Product 783900 was added to the cart.

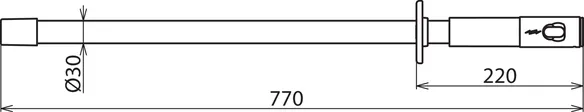

Part No. 783905 IS PHE4 STK 770

GTIN 4013364292499, Customs tariff No. (EU): 82055980, Gross weight: 538.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 770 mm
Length (handle) (lH ) 220 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 783905 was added to Notepad.

Product 783905 was added to the cart.


Telescopic Insulating Stick, with universal Gear Coupling

1 Product

Part No. 766037 ISMTC N 36 ZK 10600

GTIN 4013364125940, Customs tariff No. (EU): 82055980, Gross weight: 7.56 kg, PU: 1.00 Stk


Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG max / IG min ) 10,600 / 1750 mm
Length (handle) (IH min ) 1680 mm
Material Glass-fibre reinforced epoxy resin tube

Product 766037 was added to Notepad.

Product 766037 was added to the cart.


ISN 36 STK Insulating Stick with Silicon Insulator

2 Products

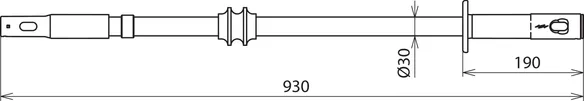

Part No. 766362 ISN 36 STK 930SN7688

GTIN 4013364230705, Customs tariff No. (EU): 82055980, Gross weight: 1175.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG ) 930 mm
Length (handle) (IH ) 190 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766362 was added to Notepad.

Product 766362 was added to the cart.

Part No. 766367 ISN 36 STK 30 1280

GTIN 4013364137042, Customs tariff No. (EU): 82055980, Gross weight: 1200.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG ) 1280 mm
Length (handle) (IH ) 560 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766367 was added to Notepad.

Product 766367 was added to the cart.


For PHE (Voltage Detectors for Overhead Lines)

2 Products

Part No. 766075 IS M12 STK 30 1060

GTIN 4013364120471, Customs tariff No. (EU): 82055980, Gross weight: 520.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 1060 mm
Diameter 30 mm
DB drawing No. 3 Ebgw 02.53

Product 766075 was added to Notepad.

Product 766075 was added to the cart.

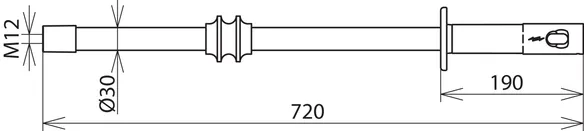

Part No. 766072 IS M12 STK 30 720

GTIN 4013364126114, Customs tariff No. (EU): 82055980, Gross weight: 400.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 720 mm
Diameter 30 mm
DB drawing No. 3 Ebgw 02.51

Product 766072 was added to Notepad.

Product 766072 was added to the cart.


For PHE III, with M12 Threaded Bushing

1 Product

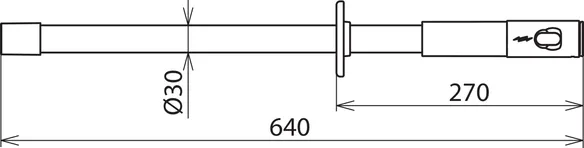

Part No. 766331 IS M12 STK 640

GTIN 4013364115002, Customs tariff No. (EU): 82055980, Gross weight: 375.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 640 mm
Length (handle) (IH ) 270 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766331 was added to Notepad.

Product 766331 was added to the cart.


For PHE III, with M12 Threaded Bushing

1 Product

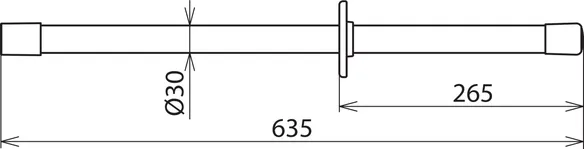

Part No. 766328 IS M12 AK 635

GTIN 4013364135765, Customs tariff No. (EU): 82055980, Gross weight: 283.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 635 mm
Handle length (IH ) 270 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766328 was added to Notepad.

Product 766328 was added to the cart.


Insulating Stick for PHE4 and PHE III, with universal Gear Coupling

1 Product

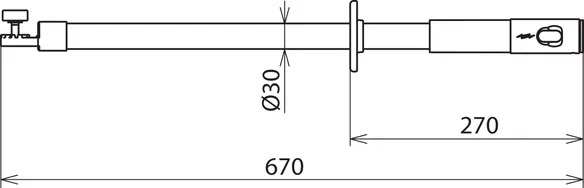

Part No. 766368 IS ZK STK 670

GTIN 4013364115026, Customs tariff No. (EU): 82055980, Gross weight: 340.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Nominal voltage (UN ) 30 kV
Total length (lG ) 670 mm
Length (handle) (IH ) 265 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766368 was added to Notepad.

Product 766368 was added to the cart.


IS STK Insulating Stick with Plug-in Coupling

1 Product

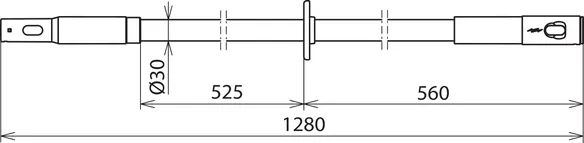

Part No. 766363 IS 36 STK 30 1280

GTIN 4013364121737, Customs tariff No. (EU): 82055980, Gross weight: 1200.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Nominal voltage (UN ) Up to 36 kV
Total length (lG ) 1280 mm
Length (handle) (IH ) 560 mm
Diameter 30 mm

Product 766363 was added to Notepad.

Product 766363 was added to the cart.


For ASP, with universal Gear Coupling

1 Product

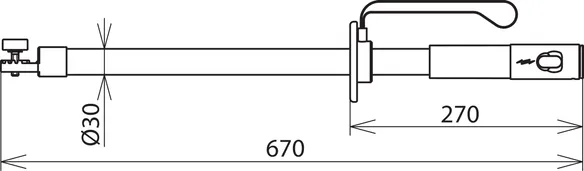

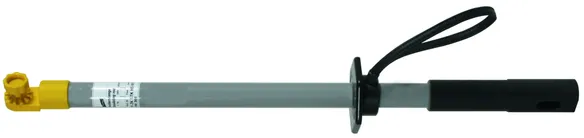

Part No. 766369 IS ZK STK HS 670

GTIN 4013364125025, Customs tariff No. (EU): 82055980, Gross weight: 388.00 g, PU: 1.00 Stk


Images

Additional information



Technical data

Total length (lG ) 670 mm
Length (handle) (IH ) 270 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766369 was added to Notepad.

Product 766369 was added to the cart.


For IS for cleaning Windscreens

1 Product

Part No. 766048 IS 25 ZK 2885

GTIN 4013364120433, Customs tariff No. (EU): 82055980, Gross weight: 3.40 kg, PU: 1.00 Stk


Images

Additional information



Technical data

Nominal voltage (UN ) Up to 25 kV AC
Total length (lG ) 2890 mm
Length (handle) (lH ) 1000 mm
Diameter 30 mm
Material Glass-fibre reinforced polyester tube

Product 766048 was added to Notepad.

Product 766048 was added to the cart.
